Home LED Linear High Bay, 2ft, 110W, 14850 Lumens

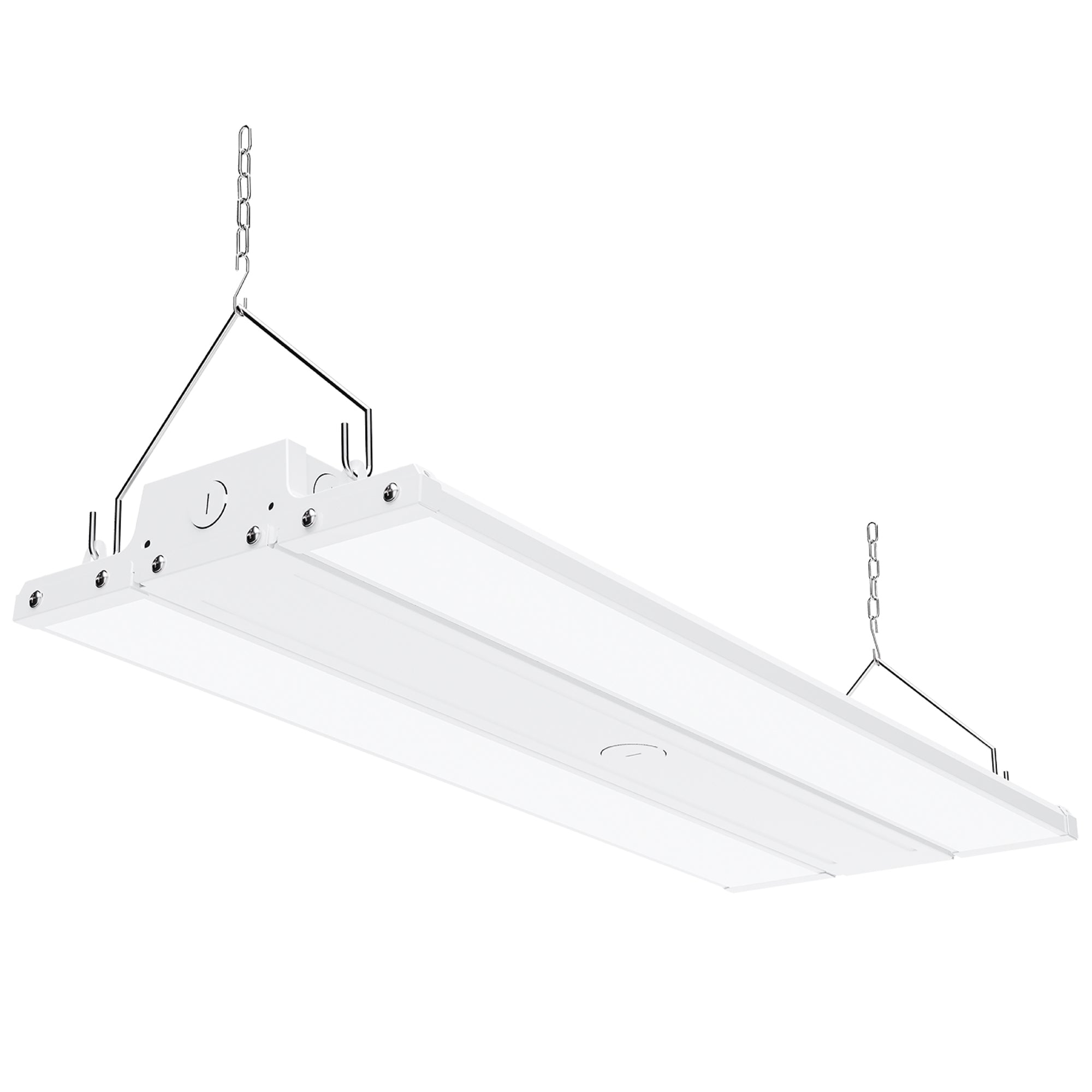

Dimmable 110W LED Linear High Bay from Sunco Lighting is 2 feet long and offers instant on, bright light for warehouse, gymnasium, workshop or industrial space. This 15400 lumen area light comes with chains for hanging high bay light fixture. The 110W LED is a 400W equivalent with a beam spread of 19ft to 26ft. The fixture is UL listed and FCC certified. Dim via 1-10V dimming.
LED Linear High Bay, 2ft, 110W, 14850 Lumens

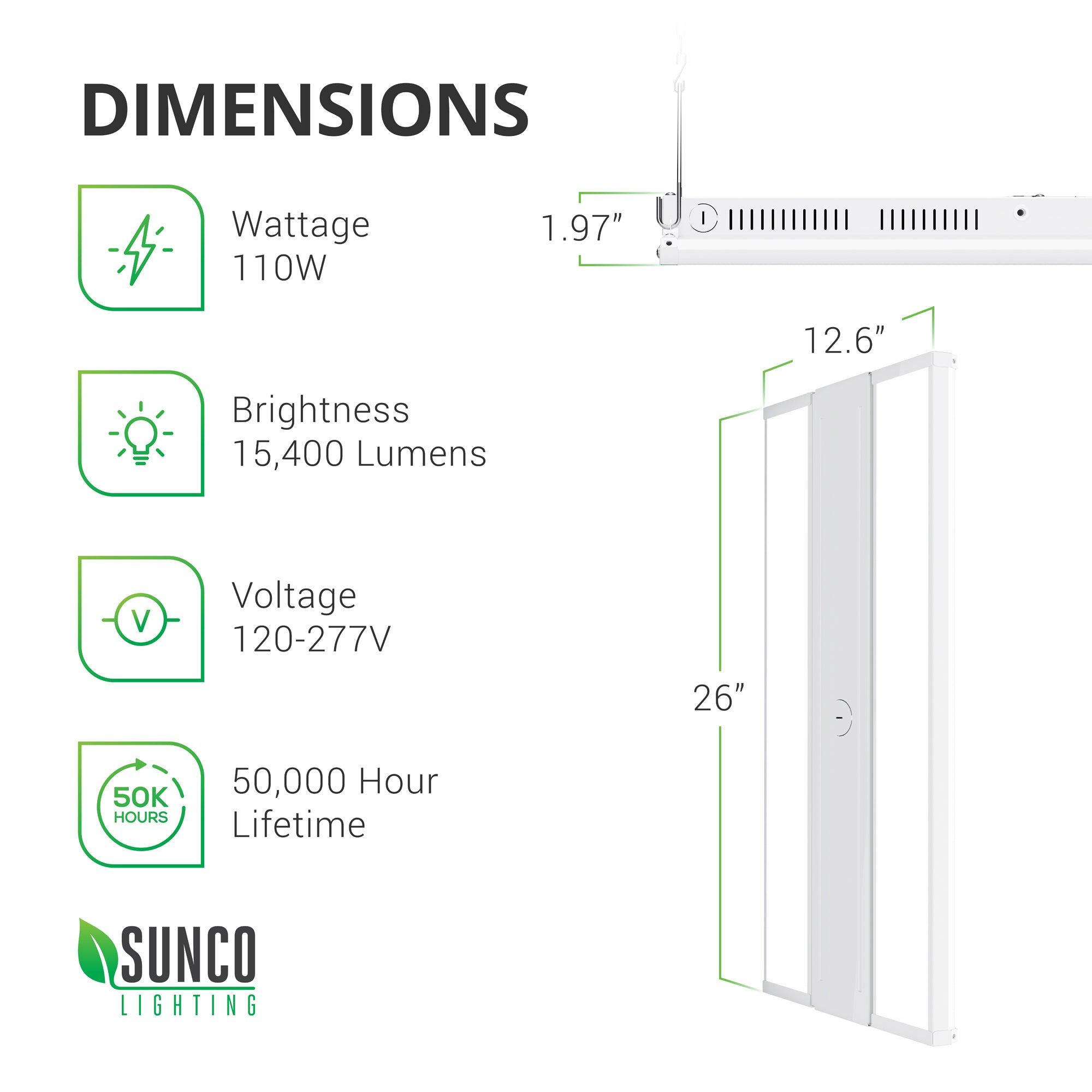

Dimensions of the Sunco 110W LED Linear High Bay. 26-inches long, 12.6-inches wide, 1.97-inches. Image shows the vents on the side of the fixture to allow for heat dissipation. Other technical specs: wattage 110W, brightness 15400 lumens, 100/277V, 50,000 hour lifespan. This LED linear high bay provides a streamlined, overhead area light that is fast to install and easily maintained. The LED is integrated so you won’t need to replace the bulb during the long lifetime of the light fixture.

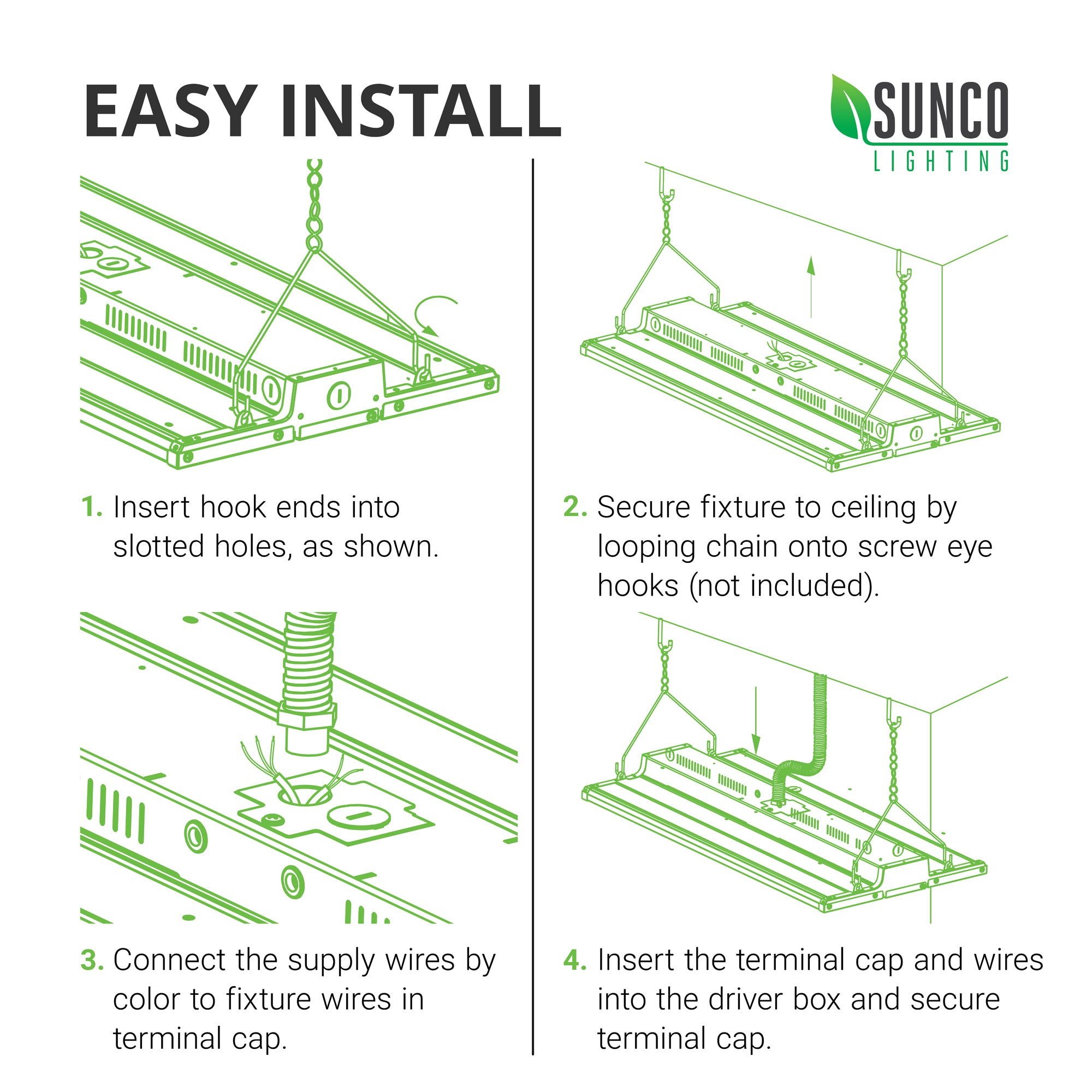

Easy Install of the Sunco LED Linear High Bay. Install instructions are expanded in the user manual. Here are the basic steps: 1. Insert hook ends of V hook into slotted holes as shown. 2. Secure fixture to ceiling by looping chain onto screw eye hooks (not included). 3. Connect the supply wires by color to fixture wires in terminal caps. 4. Insert the terminal cap and wires into the driver box and secure terminal cap. Image shows line art of easy installation process.

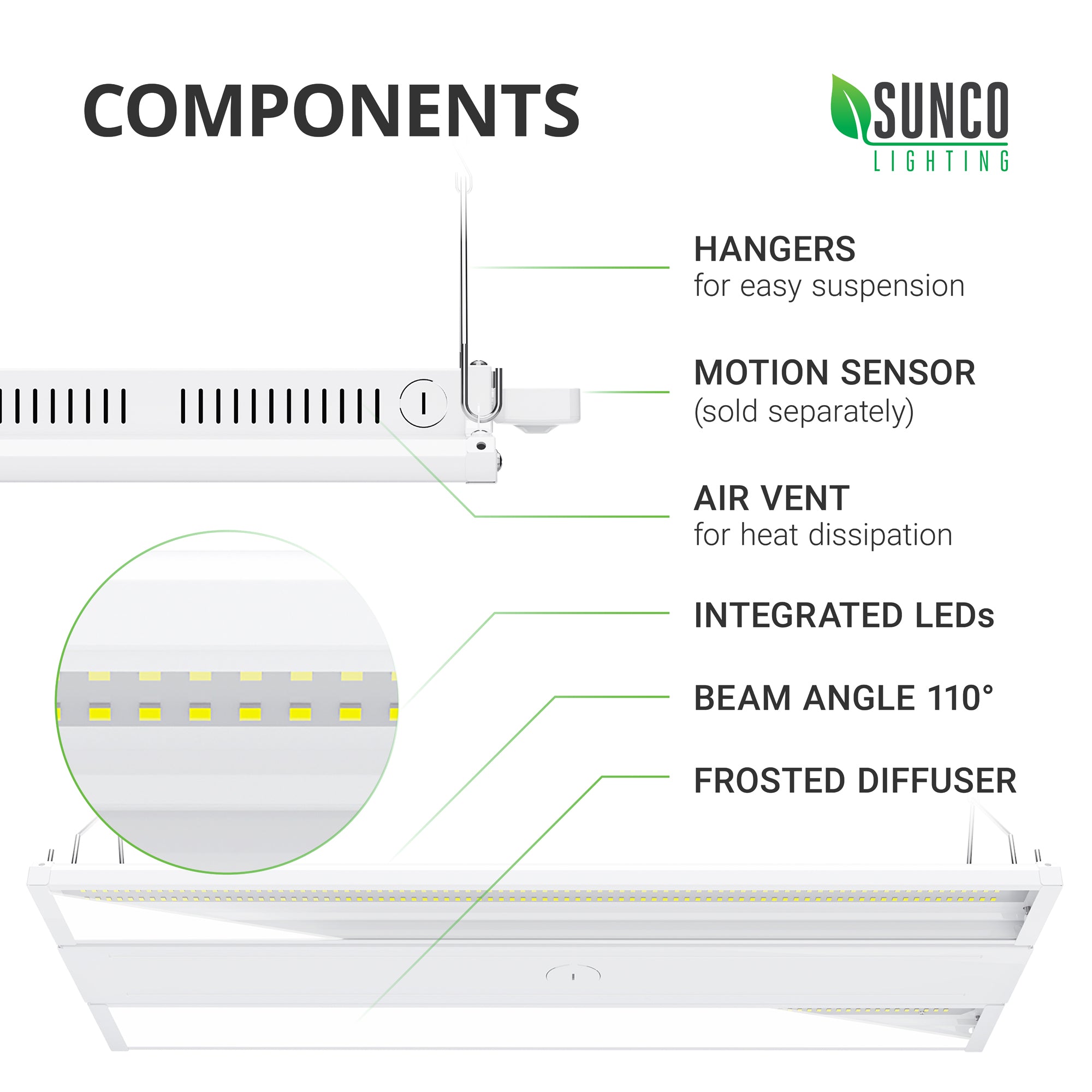

Components of the 110W LED Linear High Bay. Image shows closeup of the light fixture with highlights of the Integrated LEDs, air vents for heat dissipation, V hook hangers for easy suspension on included hanging chains, and a frosted diffuser to soften harsh edge shadows. An optional motion sensor accessory is shown attached to the end of the high bay light fixture. This unit is sold separately. This hanging light fixture includes a wide beam angle 110-degrees.

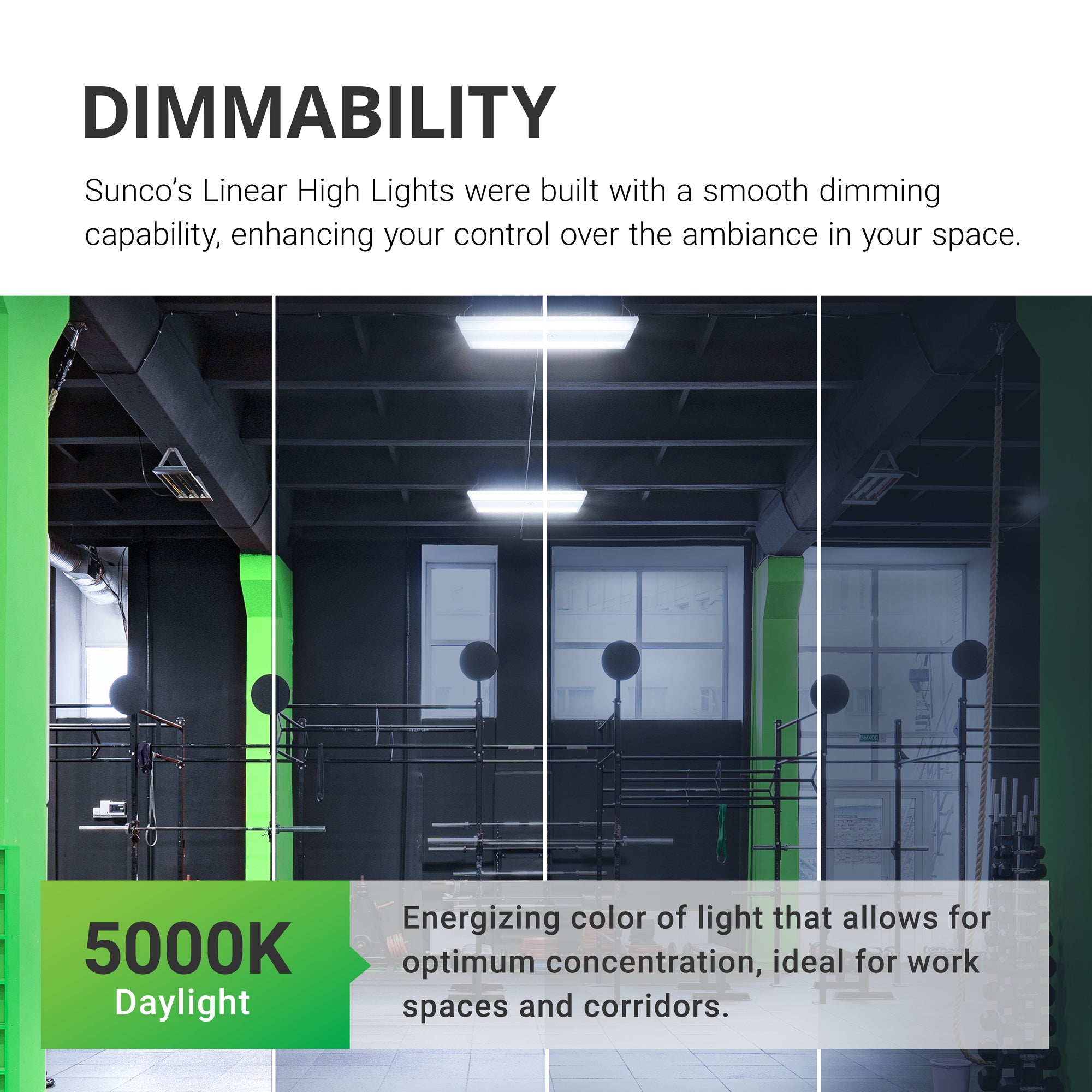

Dimmability. Sunco’s linear high bay lights were built with a smooth dimming capability to enhance your control over the ambiance of your space. Image shows a gymnasium with a range of shaded to bright areas to simulate the dimmable quality of this area light. Sunco Linear High Bay lights are suspended overhead from the included chains and V hooks.
LED Linear High Bay, 2ft, 110W, 14850 Lumens

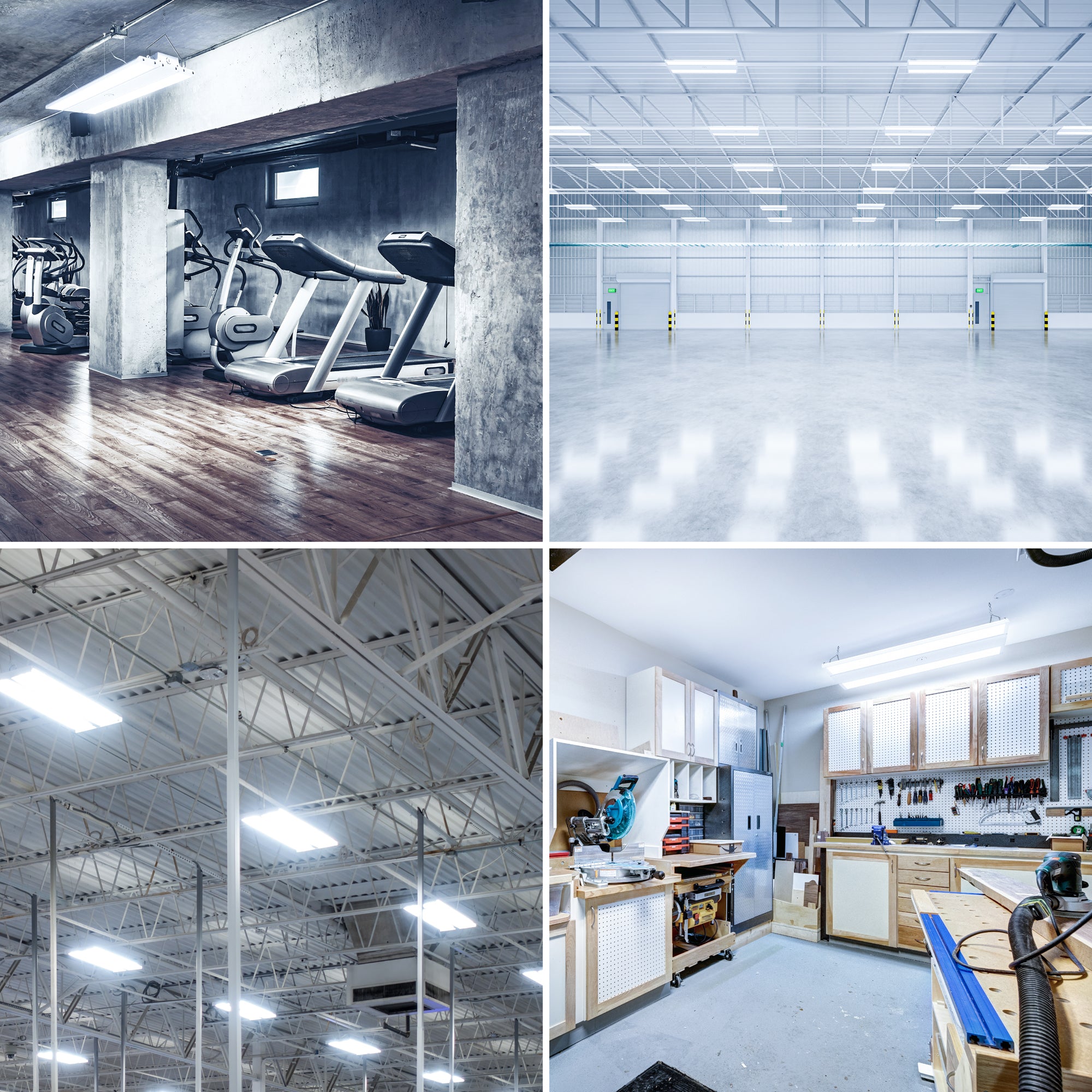

Lighting applications for the Linear High Bay. This instant on area light can be suspended from the included hanging chains to provide bright light in your exercise space or gym above workout machines, in a warehouse with a high ceiling, or in your wood workshop. This fixture is dimmable via 1-10V dimming and also offers 15400 lumens of bright light for task lighting where you need it.
Dimmable 110W LED Linear High Bay from Sunco Lighting is 2 feet long and offers instant on, bright light for warehouse, gymnasium, workshop or industrial space. This 15400 lumen area light comes with chains for hanging high bay light fixture. The 110W LED is a 400W equivalent with a beam spread of 19ft to 26ft. The fixture is UL listed and FCC certified. Dim via 1-10V dimming.
LED Linear High Bay, 2ft, 110W, 14850 Lumens
Dimensions of the Sunco 110W LED Linear High Bay. 26-inches long, 12.6-inches wide, 1.97-inches. Image shows the vents on the side of the fixture to allow for heat dissipation. Other technical specs: wattage 110W, brightness 15400 lumens, 100/277V, 50,000 hour lifespan. This LED linear high bay provides a streamlined, overhead area light that is fast to install and easily maintained. The LED is integrated so you won’t need to replace the bulb during the long lifetime of the light fixture.
Easy Install of the Sunco LED Linear High Bay. Install instructions are expanded in the user manual. Here are the basic steps: 1. Insert hook ends of V hook into slotted holes as shown. 2. Secure fixture to ceiling by looping chain onto screw eye hooks (not included). 3. Connect the supply wires by color to fixture wires in terminal caps. 4. Insert the terminal cap and wires into the driver box and secure terminal cap. Image shows line art of easy installation process.
Components of the 110W LED Linear High Bay. Image shows closeup of the light fixture with highlights of the Integrated LEDs, air vents for heat dissipation, V hook hangers for easy suspension on included hanging chains, and a frosted diffuser to soften harsh edge shadows. An optional motion sensor accessory is shown attached to the end of the high bay light fixture. This unit is sold separately. This hanging light fixture includes a wide beam angle 110-degrees.
Dimmability. Sunco’s linear high bay lights were built with a smooth dimming capability to enhance your control over the ambiance of your space. Image shows a gymnasium with a range of shaded to bright areas to simulate the dimmable quality of this area light. Sunco Linear High Bay lights are suspended overhead from the included chains and V hooks.
LED Linear High Bay, 2ft, 110W, 14850 Lumens
Lighting applications for the Linear High Bay. This instant on area light can be suspended from the included hanging chains to provide bright light in your exercise space or gym above workout machines, in a warehouse with a high ceiling, or in your wood workshop. This fixture is dimmable via 1-10V dimming and also offers 15400 lumens of bright light for task lighting where you need it.
Sunco Lighting

LED Linear High Bay, 2ft, 110W, 14850 Lumens

HB_L2-110W-5K-1PKClick to Copy
$59.99

4 Reviews
  • Lumens : 14850LM
  • Wattage : 110W
  • Dimming : Dimmable
  • CRI : 80+
  • Moisture Rating : Damp Rated
  • Warranty : 7-Year
Read More
$59.99

Color Guide
Color Temperature Guide
Color Temperature Guide Color Temperature Guide
5000K
Color :
Occupancy Microwave Motion Sensor for Linear High Bay, Plug N Play
Occupancy Microwave Motion Sensor for Linear High Bay, Plug N Play
$19.99
$19.99

Volume Discounts automatically applied for orders $500+

Free Shipping on orders $100+

Ships within 1 business day
Overview
Sunco Lighting Dimmable Linear High Bay light fixture 110W=400W is commercial grade, integrated LED fixture with included V hook to suspend the light for task lighting in gyms, warehouses, storage facilities, basements, and workshops. With durable construction, a 50,000 hour lifespan, and no need to replace tubes like outdated technology, this fixture lowers maintenance cost and time. Produces instantaneous bright light (15,400 lumens). Optional motion sensor available.
Beam Spread. The 110W Linear High Bay LED light fixture offers illuminated coverage of varying beam spread depending on how high you hang the light from the ground. The image shows this area light suspended at three different heights. At 15 feet the light has a 34ft beam spread. At 20 feet the light has a 44 foot beam spread. At 30 feet the light has a 68 foot beam spread.
Easy Install. The damp rated Sunco Linear High Bay can be installed with chain mount, conduit (not included), and surface mount (not included). Image points out the features and installation options. There are knockouts on the fixture for an added, optional motion sensor accessory. A 1/2 inch gap between the light body and LED driver make for excellent heat dissipation, so do the air vents along the side of the LED fixture body.
Dimmable lighting. With 0-10V dimming, the DC voltage varies between 0 up to 10V to create the lowest dimming levels and scale the output of your LED light. A select list of dimmers is shown on this image. Customer service has the full dimmer list which is also available in our support tab. Sunco long-lasting LEDs use less power and have less harmful chemicals than traditional lighting options. With the Sunco Cares program we make charitable donations to worthy conservation organizations.
Instant on 110W area light. 1-10V dimming. Install fast with included chains.

Overview

Sunco Lighting Dimmable Linear High Bay light fixture 110W=400W is commercial grade, integrated LED fixture with included V hook to suspend the light for task lighting in gyms, warehouses, storage facilities, basements, and workshops. With durable construction, a 50,000 hour lifespan, and no need to replace tubes like outdated technology, this fixture lowers maintenance cost and time. Produces instantaneous bright light (15,400 lumens). Optional motion sensor available.
Beam Spread. The 110W Linear High Bay LED light fixture offers illuminated coverage of varying beam spread depending on how high you hang the light from the ground. The image shows this area light suspended at three different heights. At 15 feet the light has a 34ft beam spread. At 20 feet the light has a 44 foot beam spread. At 30 feet the light has a 68 foot beam spread.
Easy Install. The damp rated Sunco Linear High Bay can be installed with chain mount, conduit (not included), and surface mount (not included). Image points out the features and installation options. There are knockouts on the fixture for an added, optional motion sensor accessory. A 1/2 inch gap between the light body and LED driver make for excellent heat dissipation, so do the air vents along the side of the LED fixture body.
Dimmable lighting. With 0-10V dimming, the DC voltage varies between 0 up to 10V to create the lowest dimming levels and scale the output of your LED light. A select list of dimmers is shown on this image. Customer service has the full dimmer list which is also available in our support tab. Sunco long-lasting LEDs use less power and have less harmful chemicals than traditional lighting options. With the Sunco Cares program we make charitable donations to worthy conservation organizations.
Instant on 110W area light. 1-10V dimming. Install fast with included chains.

Details

● EASY INSTALL & OPERATION - Easily install this 110W rectangular High Bay fixture via the included hanging chain and V hooks. Generates instant, flicker-free, bright task lighting in your warehouse, workshop, gymnasium, or industrial space.

● DIMMABLE & WIDE BEAM SPREAD - With seamless dimming capabilities (1-10V), our LED High Bay provides maximum eye comfort and effectiveness. 400W equivalent with a 90° beam angle for wide coverage.

● COMMERCIAL GRADE – Featuring durable metal housing, our High Bay replaces outdated 600W HID fixtures to improve energy efficiency and savings. Suitable for dry or damp locations.

● MOTION SENSOR COMPATIBLE - Use Sunco's Microwave Motion Sensor to further reduce wattage consumption, detect movement, and automatically illuminate your LED Linear High Bay.

● CERTIFIED PRODUCT - We uphold the highest standards by testing each product for optimal performance and safety. This light fixture is UL certified.

● BENEFITS - 7-year warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.

ul1 us

Specifications

LED Linear High Bay, 2ft, 110W, 14850 Lumens Specifications Download Specs
Lumens 14850LM
Efficacy 140LM/W
Wattage 110W
Wattage Equivalency 400W
Voltage 120-277V
Operating Temperature -40°F-113°F
Dimmable Dimmable
Dimming Details 0-10V Dimming
Color Temperature 5000K
CRI 80+
Beam Angle 110°
Moisture Rating Damp Rated
Included Components Linear High Bay Fixture, x2 V Hook, x2 Linked Chain
Power Type Hardwired
Mount Type Hanging
Motion Sensor No
Sensor Details Add a Microwave Sensor Accessory to create motion sensor settings
Pull Chain No
Material Aluminum+PC
Class Dimming (Isolated, Class 2), Output Driver (Non-Class 2)
Certifications UL
Switching Cycles 50,000
Lifetime 50,000 Hours
Warranty 7-Year
