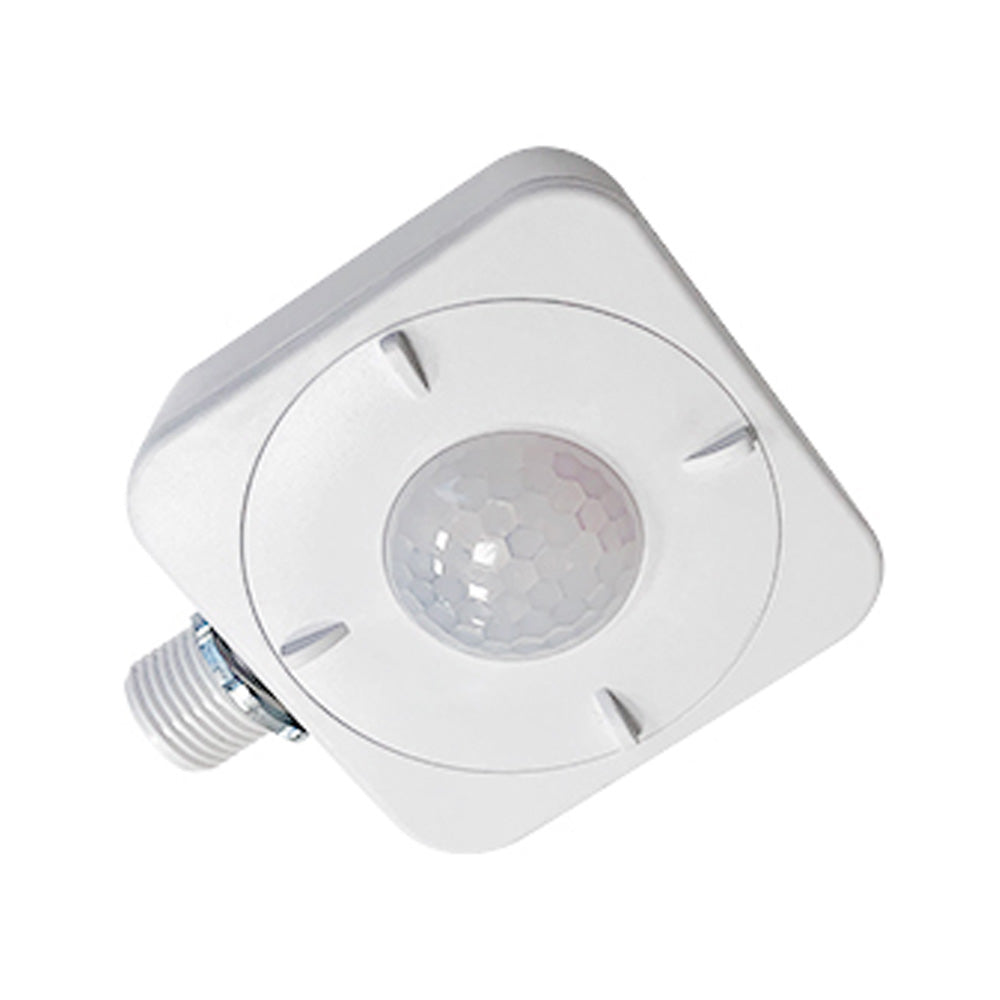

Motion Sensor for Strip Light Fixtures
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayThis Motion Sensor works best in low and high bay applications for indoor commercial fixtures.

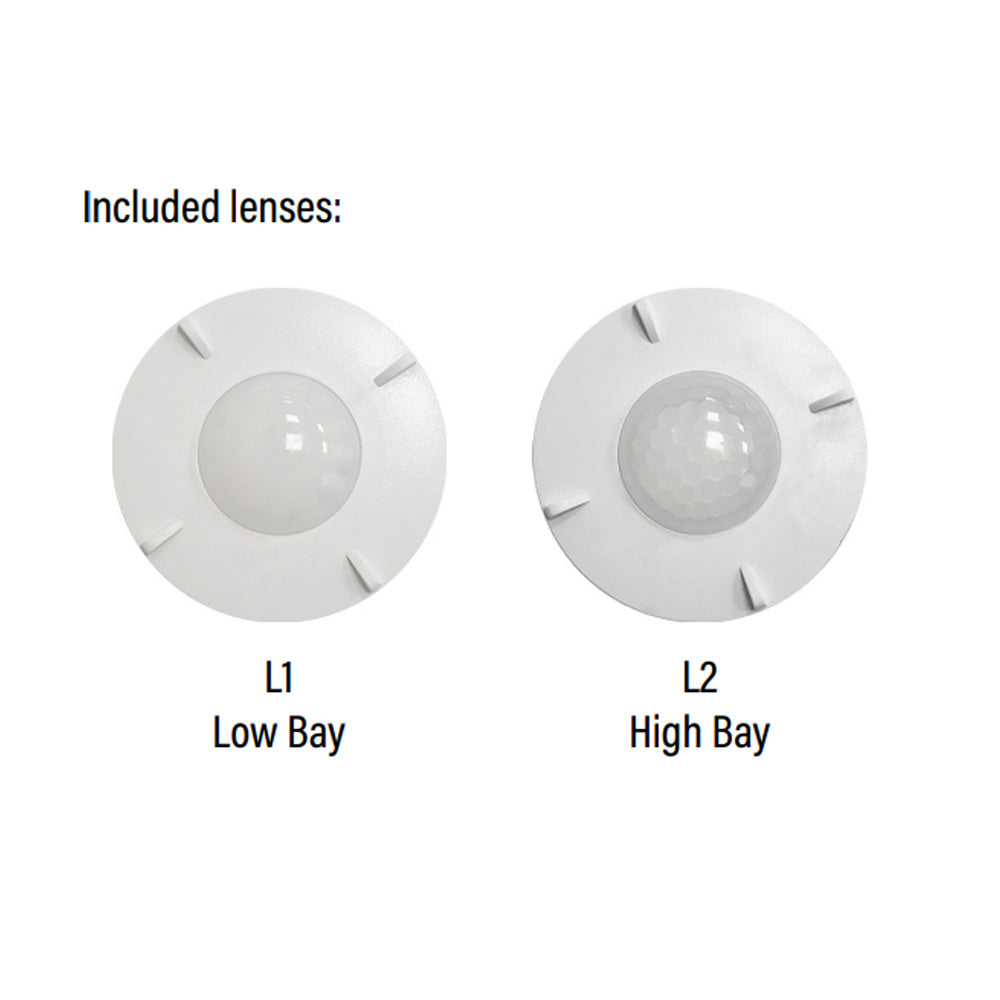

- Includes two lenses for low bay and high bay
- Uses infrared energy as its control signal source

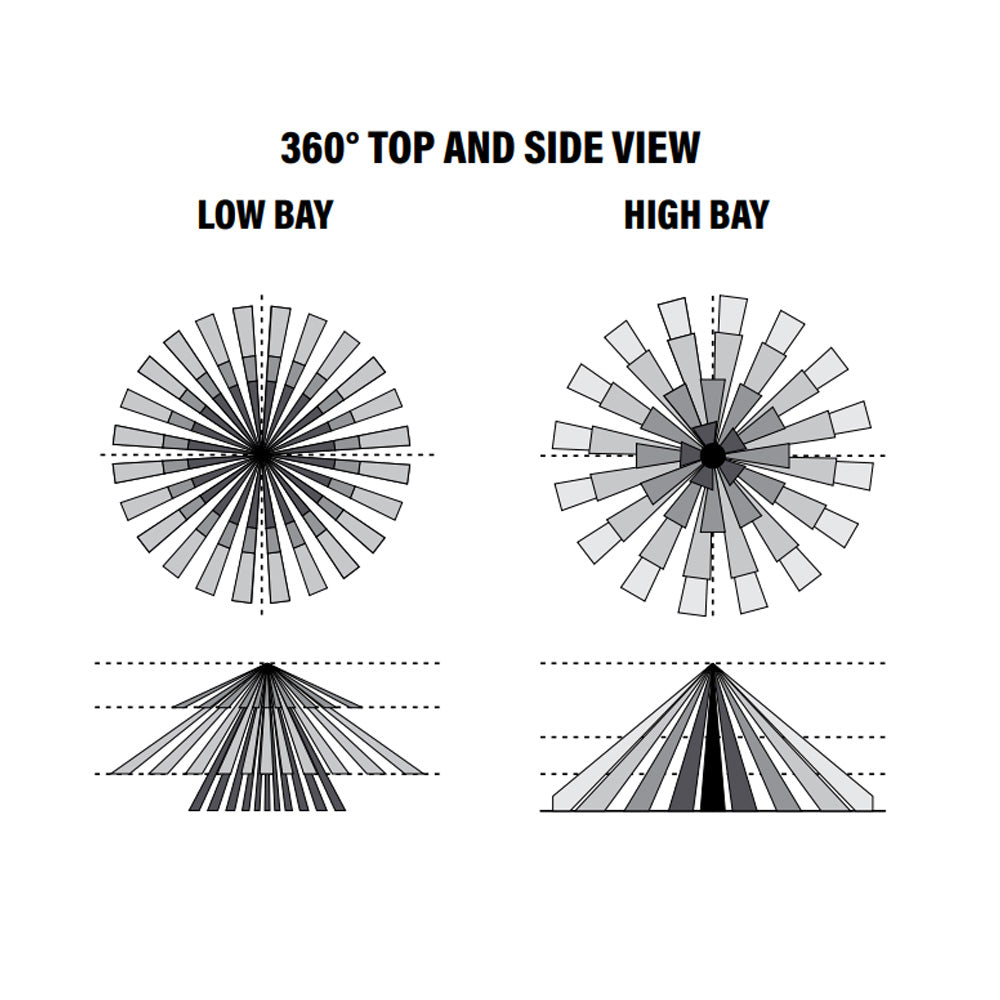

- 360° field of view
- 30ft coverage area
- 1/2" knockout, hardwired, mounting
- 2 year manufacturer's warranty
Compatible Fixtures:
PRE-25455, PRE-01655, PRE-21655, PRE-31655, PRE-51655, PRE-61655, PRE-16455, PRE-26455, PRE-46455, PRE-56455, PRE-07455, PRE-17455, PRE-37455, PRE-47455
Overview
This Motion Sensor works best in low and high bay applications for indoor commercial fixtures.
- Includes two lenses for low bay and high bay
- Uses infrared energy as its control signal source
- 360° field of view
- 30ft coverage area
- 1/2" knockout, hardwired, mounting
- 2 year manufacturer's warranty
Compatible Fixtures:
PRE-25455, PRE-01655, PRE-21655, PRE-31655, PRE-51655, PRE-61655, PRE-16455, PRE-26455, PRE-46455, PRE-56455, PRE-07455, PRE-17455, PRE-37455, PRE-47455
Details
● MOTION ACTIVATED - This convenient, easily installed motion activated sensor detects movement to automate lighting in your gymnasium, retail store, or other commercial space. Use this occupancy sensor to only illuminate when necessary. Great for safety purposes in a warehouse or large storeroom or for security to detect movement after hours.
● INCREASE ENERGY SAVINGS - Attached motion sensor turns on your light only when you need it to reduce your wattage consumption. Light will turn off after the adjustable time delay has been set between 10 sec. - 30 min. of no motion detected.
● BENEFITS - 2-Year Manufacturer's Warranty.
Specifications
| Motion Sensor for Strip Light Fixtures Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Voltage | 120-277V |
| Operating Temperature | -40°F-167°F |
| Power Type | Hardwired |
| Motion Sensor | Yes |
| Sensor Type | Yes, Infrared Photocell Sensor |

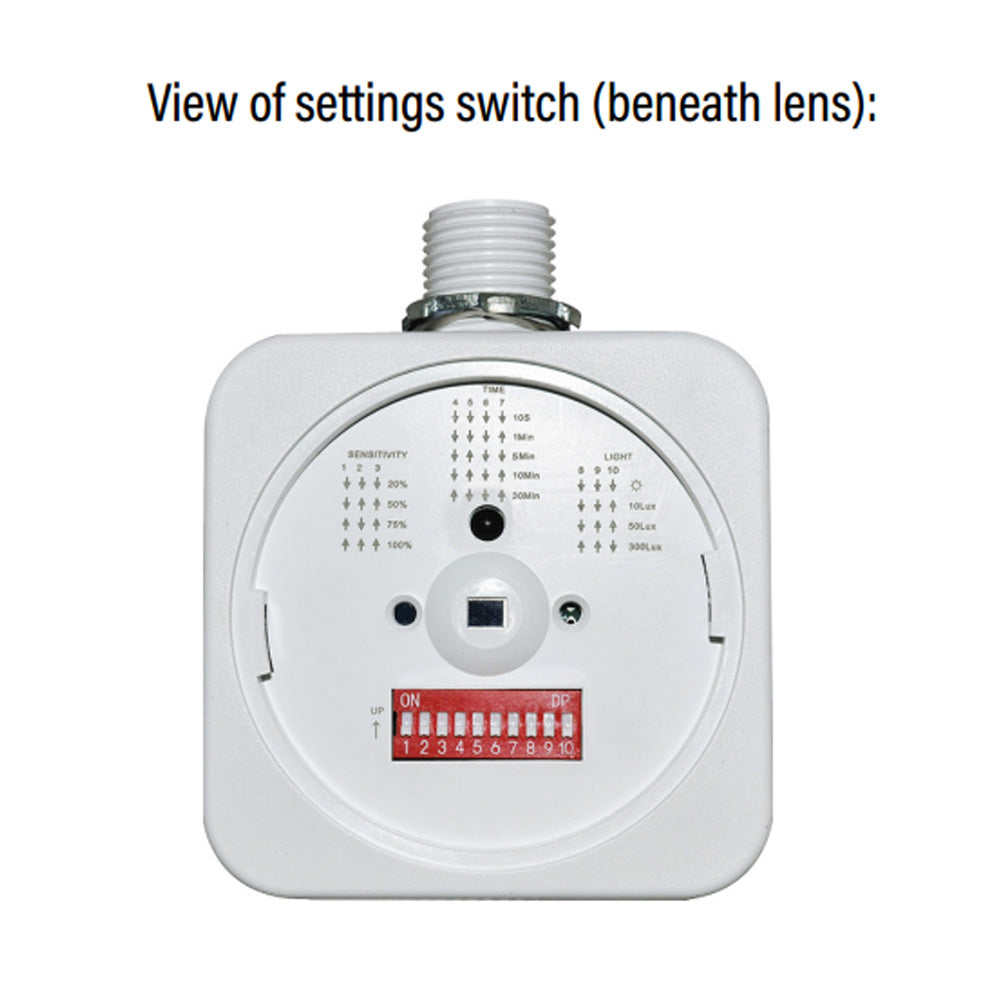

| Sensor Details | See install manual for full details about motion detection and how to set DIP Switches. |
| Range | 30’ range sensitivity detector |
| Certifications | UL |
| Warranty | 2-Year Manufacturer's Warranty |
