Home Microwave Motion Sensor for Linear High Bays
Sunco Microwave Motion Sensor for Linear High Bay is an optional accessory that is easily installed and adjustable to suit each application. With DIP switches and the ability to provide an automated occupancy sensor to illuminate warehouse, gym, office or commercial space, this motion sensor can reduce energy consumption and save money on power bills. The sensor detects motion from 50ft max height to a 30ft max radius. The install manual provides instructions on how to use the DIP switches.
Adjust sensitivity settings on our high bay motion sensor with the DIP switches. You can select Standby Levels (0/10/30/50%), adjust Lux, set hold time, standby time, and set sensitivity levels with a walk test and various range settings. The occupancy sensor will illuminate the light only when necessary so your large area light usage will reduce your power bill compared to not using a sensor.

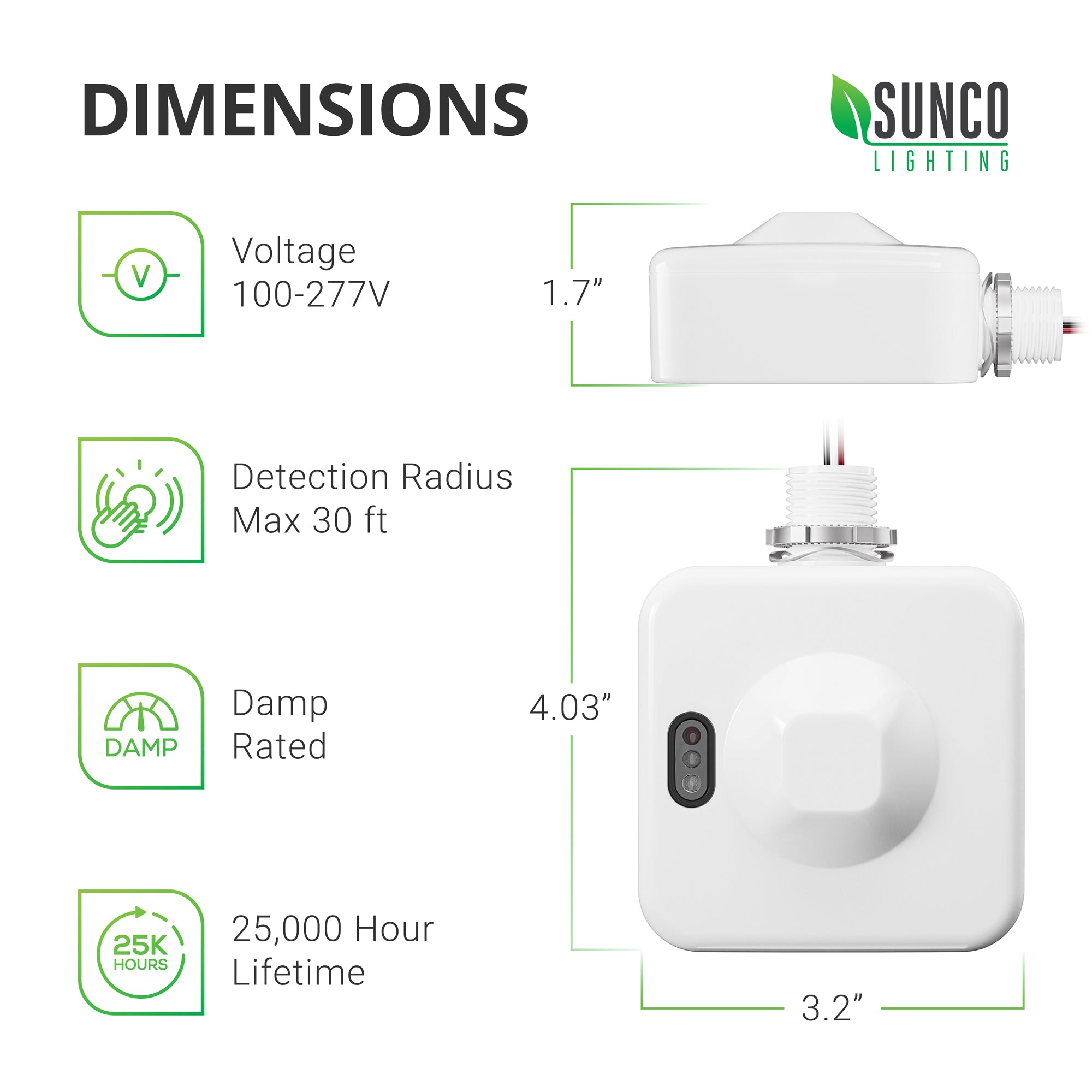

Dimensions of the Microwave Motion Sensor for LED Linear High Bays. Length 4.03 inches. Width 3.2 inches. Height 1.7 inches. Note the threaded ring to secure this accessory onto the high bay light fixture. Some tech specs: Voltage 100-277V, Detection Radius Max 30ft, damp rated, 25,000 hour lifespan. DIP switch access door is not shown here, but full adjustable settings details can be found in the motion sensor user guide.

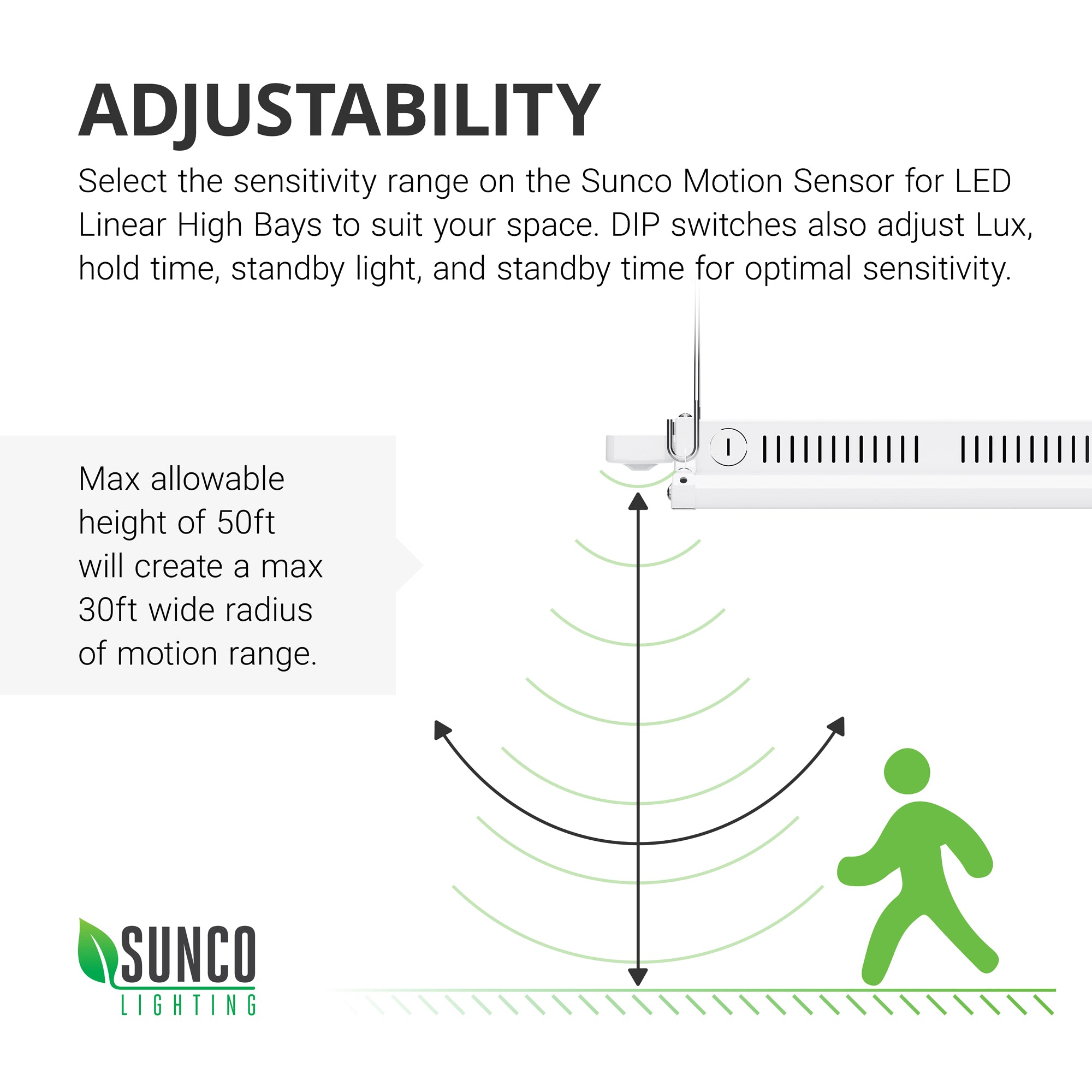

Adjustability. Select sensitivity range on the Sunco Motion Sensor for LED Linear High Bays to suit your space. DIP switches also adjust Lux, hold time, along with standby light and standby time for optimal sensitivity. Easily perform a walk test by following the instructions in our simple install guide. Max allowable height of 50ft will create a max 30ft radius of motion range. Image shows a walking test artist rendering where the person walks below the sensor to test range sensitivity.
Sustainability. Create a more efficient space with reduced wattage consumption at your warehouse, gym, or workshop when you automate your lighting with a motion sensor accessory on your LED Linear High Bay. Trio of images shows a warehouse with linear high bays above aisles, a weightlifter working out at a gym under the motion sensor on high bay, and an auto shop with lights hanging from chains above the vehicle maintenance area.

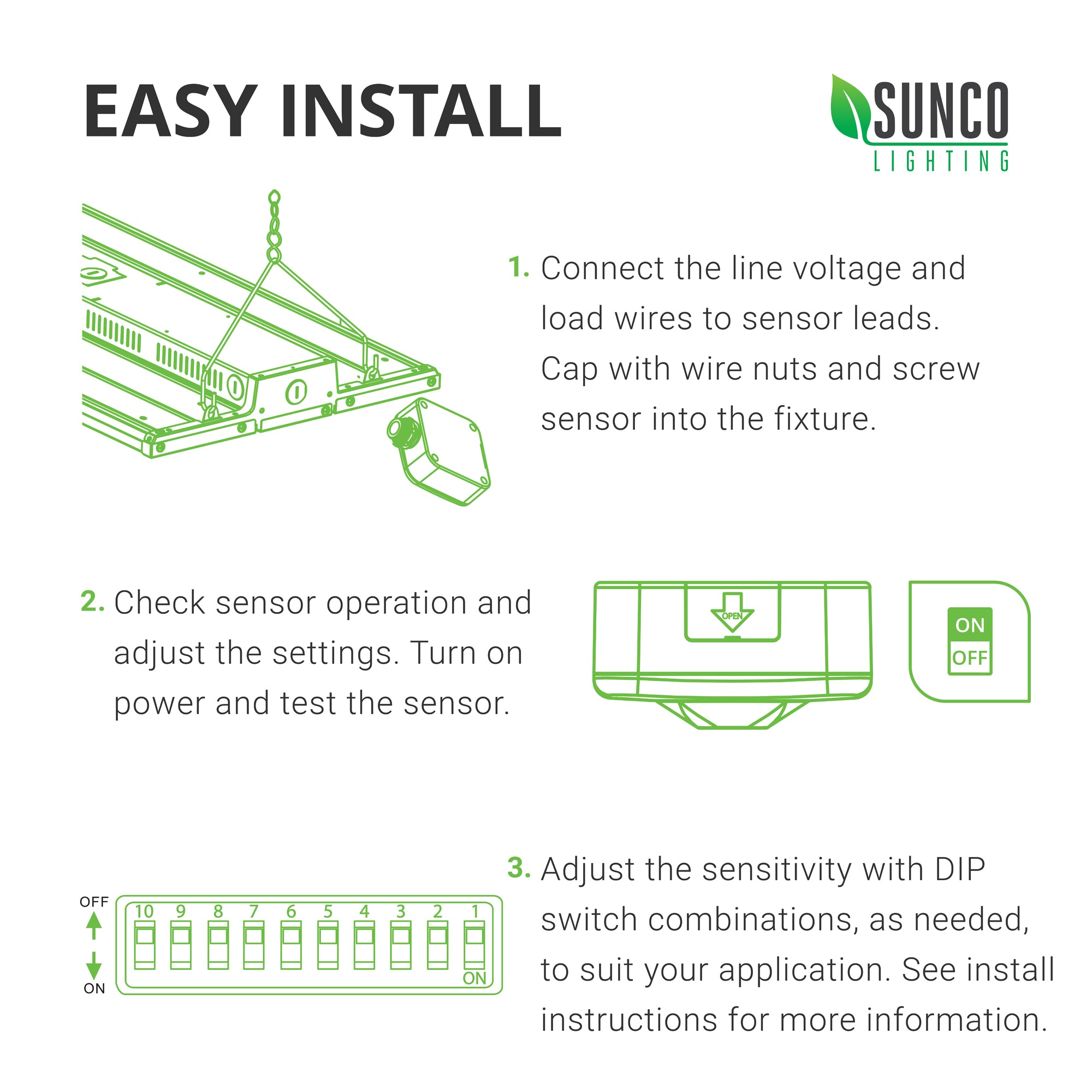

Easy Install. See install instructions in manual for more information. Here are the basic steps to install this Microwave sensor to the Sunco LED Linear High Bay. 1. Connect the line voltage and load wires to sensor leads. Cap with wire nuts and screw sensor into the fixture. 2. Check sensor operations and adjust the settings. Turn on power and test the sensor. 3. Adjust sensitivity with DIP switch combinations, as needed, to suit your application.

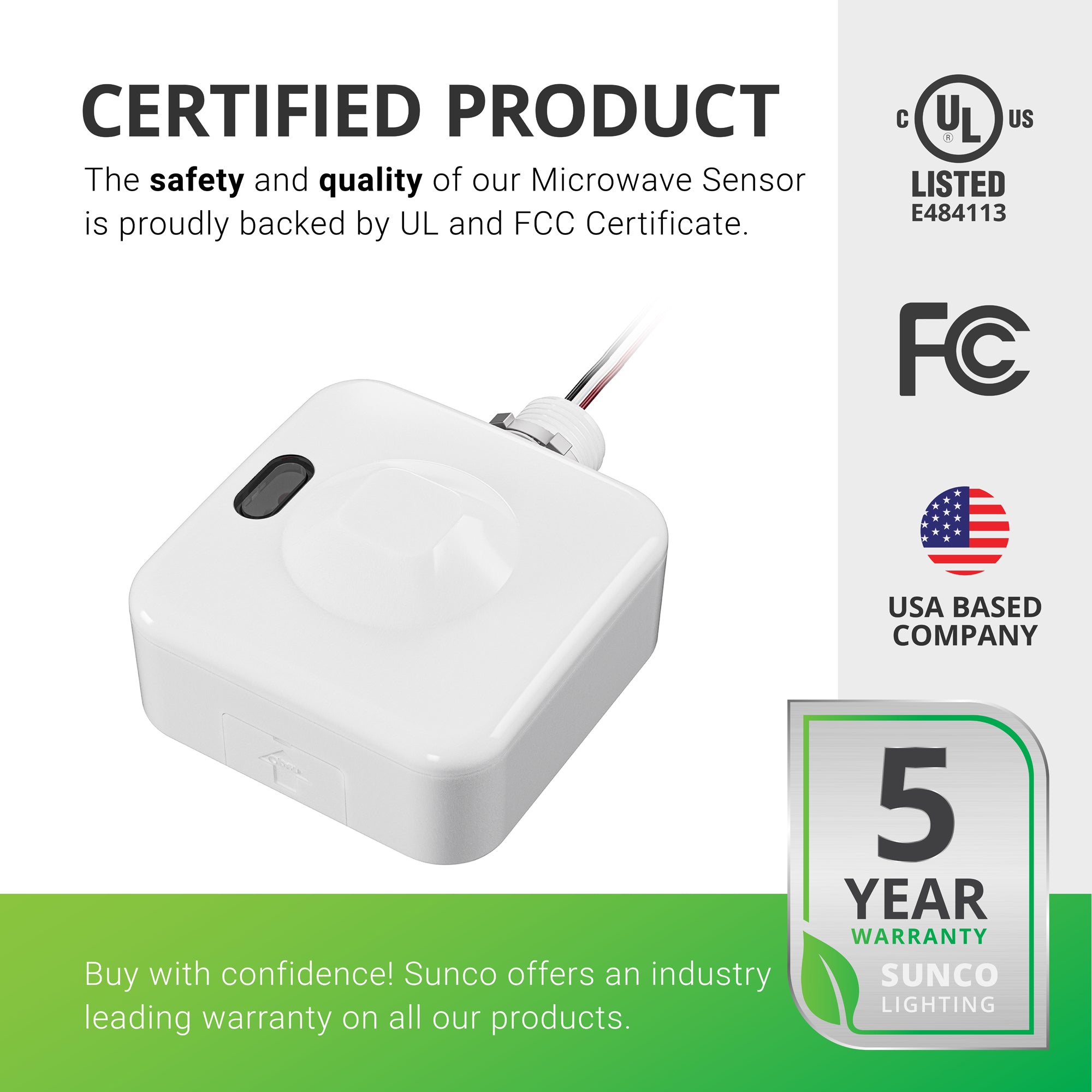

Certified Product. The safety and quality of our Microwave Sensor for Linear High Bays is proudly backed by UL and FCC certificates. Sunco is America owned and operated. Sunco offers an industry leading warranty on all our products. This sensor has a 5-year warranty. The sensor is shown in this image. It would screw onto the LED Linear High Bay with the end knockout and secure with the threaded ring.
Out of Stock
Sunco Microwave Motion Sensor for Linear High Bay is an optional accessory that is easily installed and adjustable to suit each application. With DIP switches and the ability to provide an automated occupancy sensor to illuminate warehouse, gym, office or commercial space, this motion sensor can reduce energy consumption and save money on power bills. The sensor detects motion from 50ft max height to a 30ft max radius. The install manual provides instructions on how to use the DIP switches.
Adjust sensitivity settings on our high bay motion sensor with the DIP switches. You can select Standby Levels (0/10/30/50%), adjust Lux, set hold time, standby time, and set sensitivity levels with a walk test and various range settings. The occupancy sensor will illuminate the light only when necessary so your large area light usage will reduce your power bill compared to not using a sensor.
Dimensions of the Microwave Motion Sensor for LED Linear High Bays. Length 4.03 inches. Width 3.2 inches. Height 1.7 inches. Note the threaded ring to secure this accessory onto the high bay light fixture. Some tech specs: Voltage 100-277V, Detection Radius Max 30ft, damp rated, 25,000 hour lifespan. DIP switch access door is not shown here, but full adjustable settings details can be found in the motion sensor user guide.
Adjustability. Select sensitivity range on the Sunco Motion Sensor for LED Linear High Bays to suit your space. DIP switches also adjust Lux, hold time, along with standby light and standby time for optimal sensitivity. Easily perform a walk test by following the instructions in our simple install guide. Max allowable height of 50ft will create a max 30ft radius of motion range. Image shows a walking test artist rendering where the person walks below the sensor to test range sensitivity.
Sustainability. Create a more efficient space with reduced wattage consumption at your warehouse, gym, or workshop when you automate your lighting with a motion sensor accessory on your LED Linear High Bay. Trio of images shows a warehouse with linear high bays above aisles, a weightlifter working out at a gym under the motion sensor on high bay, and an auto shop with lights hanging from chains above the vehicle maintenance area.
Easy Install. See install instructions in manual for more information. Here are the basic steps to install this Microwave sensor to the Sunco LED Linear High Bay. 1. Connect the line voltage and load wires to sensor leads. Cap with wire nuts and screw sensor into the fixture. 2. Check sensor operations and adjust the settings. Turn on power and test the sensor. 3. Adjust sensitivity with DIP switch combinations, as needed, to suit your application.
Certified Product. The safety and quality of our Microwave Sensor for Linear High Bays is proudly backed by UL and FCC certificates. Sunco is America owned and operated. Sunco offers an industry leading warranty on all our products. This sensor has a 5-year warranty. The sensor is shown in this image. It would screw onto the LED Linear High Bay with the end knockout and secure with the threaded ring.

Microwave Motion Sensor for Linear High Bays

HB_LINEAR_MOTIONSENSOR-1PKClick to Copy
$29.99
  • Lifetime : 25,000 Hours
  • Warranty : 5-Year
Read More
$29.99
Color Guide
Color Temperature Guide
Color Temperature Guide
Notify Me When Available

Volume Discounts automatically applied for orders $500+

Free Shipping on orders $100+

Ships within 1 business day
Overview
Sunco Microwave Motion Sensor is designed for Linear High Bays to provide an occupancy sensor or motion activated high bay light fixture. This high-quality and damp rated sensor delivers long-lasting motion activation on area lights. It has a 25,000 hour lifespan, runs on 100-277V power and offers a 20ft maximum detection radius. Use the DIP switches to adjust settings to suit your needs in any large warehouse space like the one shown here.
Advanced Motion Technology. Using Passive Infrared technology (PIR), this occupancy sensor detects a change in infrared radiation levels (heat generated by people or animals) then turns on the light automatically. After motion stops, the light turns itself off within a set timeframe. Select times, sensitivity, and duration with the DIP switches. Image shows a warehouse with woman and a pallet jack. Linear high bay light fixtures hang from chains. Shows max height 50ft and max radius 30ft.
Adjustable Settings. Easily adjust Standby Time (up to 60 minutes) with the DIP switches. After people leave, lamp will switch off once elapsed Standby Time ends. Also choose sensitivity range (50ft maximum height to a 30ft maximum radius). All DIP switch combinations are in our simple install manual. Savings. Extend the life of your High Bay. Turn lamp on only when the room is occupied. Reduce light when people leave. Great for warehouses where only select regions need light at a given time.
Designed for Sunco's LED Linear High Bays, this sensor detects movement to automate lighting in your gymnasium, office, or other commercial space. Use this occupancy sensor to illuminate the light only when necessary. Our long-lasting LEDs use less power and have less harmful chemicals than traditional lighting options. We support a green initiative with our Sunco Cares program through charitable donations to worthy conservation organizations.
Occupancy sensor accessory. Easily adjust settings via DIP switch combinations.

Overview

Sunco Microwave Motion Sensor is designed for Linear High Bays to provide an occupancy sensor or motion activated high bay light fixture. This high-quality and damp rated sensor delivers long-lasting motion activation on area lights. It has a 25,000 hour lifespan, runs on 100-277V power and offers a 20ft maximum detection radius. Use the DIP switches to adjust settings to suit your needs in any large warehouse space like the one shown here.
Advanced Motion Technology. Using Passive Infrared technology (PIR), this occupancy sensor detects a change in infrared radiation levels (heat generated by people or animals) then turns on the light automatically. After motion stops, the light turns itself off within a set timeframe. Select times, sensitivity, and duration with the DIP switches. Image shows a warehouse with woman and a pallet jack. Linear high bay light fixtures hang from chains. Shows max height 50ft and max radius 30ft.
Adjustable Settings. Easily adjust Standby Time (up to 60 minutes) with the DIP switches. After people leave, lamp will switch off once elapsed Standby Time ends. Also choose sensitivity range (50ft maximum height to a 30ft maximum radius). All DIP switch combinations are in our simple install manual. Savings. Extend the life of your High Bay. Turn lamp on only when the room is occupied. Reduce light when people leave. Great for warehouses where only select regions need light at a given time.
Designed for Sunco's LED Linear High Bays, this sensor detects movement to automate lighting in your gymnasium, office, or other commercial space. Use this occupancy sensor to illuminate the light only when necessary. Our long-lasting LEDs use less power and have less harmful chemicals than traditional lighting options. We support a green initiative with our Sunco Cares program through charitable donations to worthy conservation organizations.
Occupancy sensor accessory. Easily adjust settings via DIP switch combinations.

Details

● MOTION ACTIVATED - Designed for the Sunco LED Linear High Bay, this convenient, easily installed motion activated sensor detects movement to automate lighting in your gymnasium, office, or other commercial space. Use this occupancy sensor to only illuminate the light when necessary. Great for safety purposes in a warehouse or large storeroom or for security to detect movement after hours.

● INCREASE ENERGY SAVINGS - Attached motion sensor turns on your light only when you need it to reduce your wattage consumption. Light will dim to standby level you choose (0/10/30/50%) when people leave the detection area, then switch off automatically after your set standby time has elapsed.

● ADJUSTABLE SETTINGS - Motion sensor ranges from 50ft maximum height to a 30ft maximum radius for optimal sensitivity. You can change Lux, hold time, standby light, and standby time, along with sensitivity distances. Easily adjust sensor settings with DIP switch combinations described in our install manual.

● CERTIFIED - We uphold the highest standards for all our products by testing each product for optimal performance and safety. Backed by UL and FCC certificates.

● BENEFITS - 5-Year Warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.

ul1fccus

Specifications

Microwave Motion Sensor for Linear High Bays Specifications Download Specs
Voltage 120-277V
Dimmable Dimmable
Dimming Details 0-10V Dimming
Operating Temperature -40°F-158°F
Lifetime 25,000 Hours
Warranty 5-Year
Switching Cycles >30,000
Certifications UL, FCC
Moisture Rating Damp
Range Motion sensor ranges from 50ft maximum height to a 30ft maximum radius for optimal sensitivity.
Power Type Hardwired
Sensor Details See install manual for full details about motion detection and how to set DIP Switches.
Motion Sensor Yes
Sensor Type Yes, Radar Photocell Sensor
