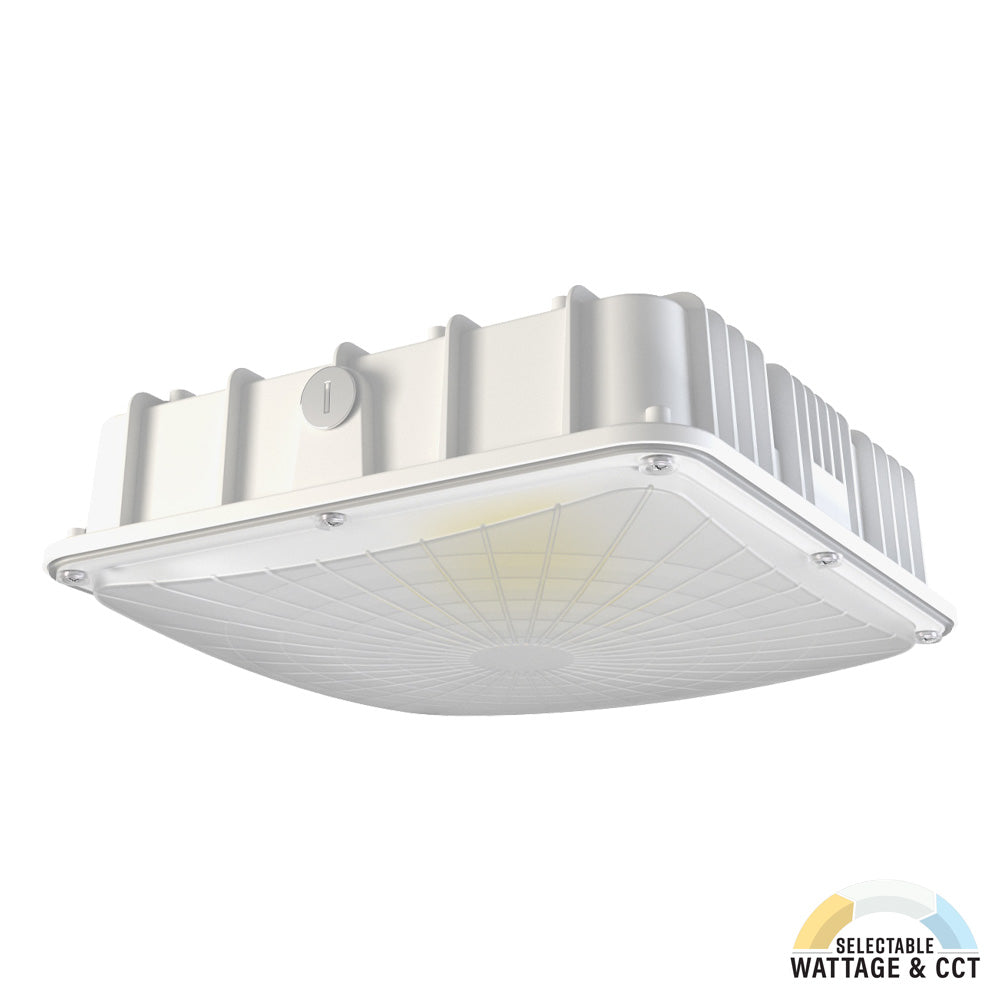

LED Canopy Light, 40W/30W/21W, Selectable CCT, 5500 Lumens
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayUltra-thin high lumen outdoor LED Canopy with integrated LEDs. Ideal for Parking structures and storage areas. Replaces 250-400W MH.

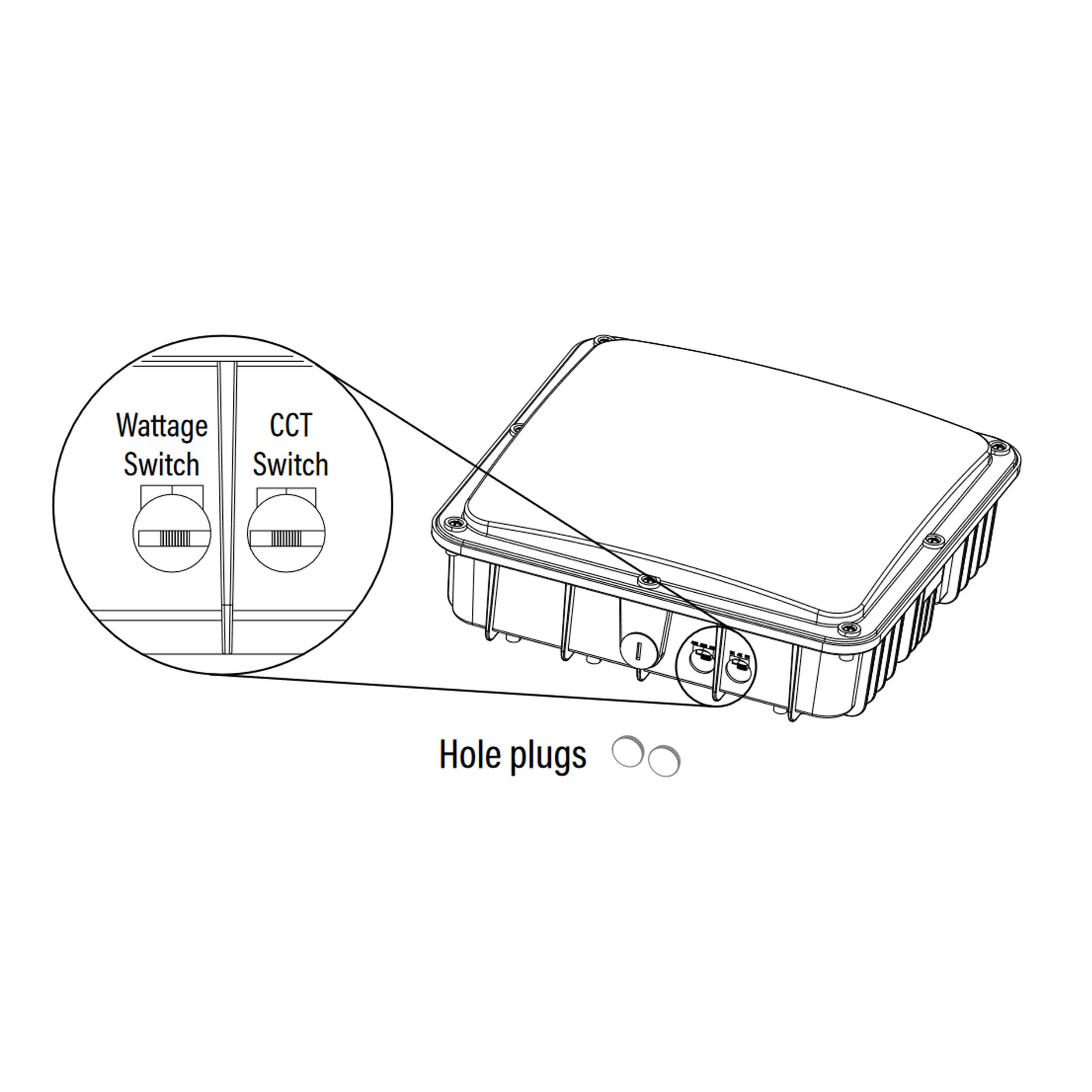

- Selectable wattages: 21W/30W/40W
- Selectable color temperatures: 3000K/4000K/5500K
- One piece sealed die cast housing with UV stabilized polycarbonate frosted optical lens.
- Dimmable 0-10V range (10% - 100%)
- IP65 rated / Wet rated
- Surface mount with J-Box or pendant with 3/4" conduit
- DLC® 5.1
Recommended Application

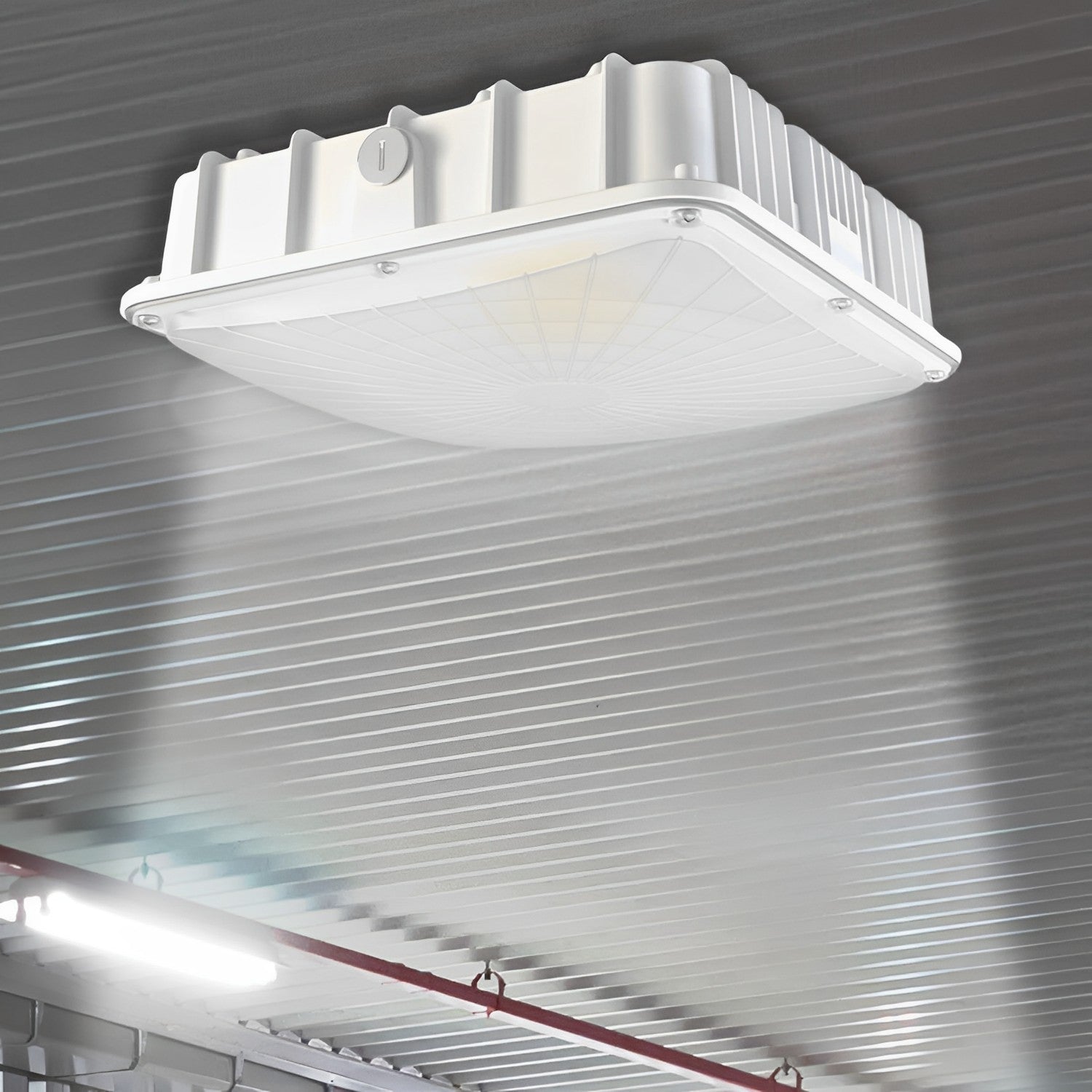

- Parking structures
- Storage areas
- Building entry ways and walkways
Overview
Ultra-thin high lumen outdoor LED Canopy with integrated LEDs. Ideal for Parking structures and storage areas. Replaces 250-400W MH.
- Selectable wattages: 21W/30W/40W
- Selectable color temperatures: 3000K/4000K/5500K
- One piece sealed die cast housing with UV stabilized polycarbonate frosted optical lens.
- Dimmable 0-10V range (10% - 100%)
- IP65 rated / Wet rated
- Surface mount with J-Box or pendant with 3/4" conduit
- DLC® 5.1
Recommended Application
- Parking structures
- Storage areas
- Building entry ways and walkways
Details
● RELIABLE WEATHERPROOFING - The IP65 weatherproof rating ensures our LED Canopy can stand up to the elements. Sealed housing for outdoor spaces such as building entry ways and walkways, pathways and permiter lighting.
● COMMERCIAL GRADE - Energy efficiency.
● CERTIFIED - Enjoy a consistent high output light backed by DLC, ETL and RoHS certificates.
● DIMMABLE
● BENEFITS - 5-Year Manufacturer Warranty.
Lighting Layout Tool
Specifications
| LED Canopy Light, 40W/30W/21W, Selectable CCT, 5500 Lumens Specifications
Download Specs |
|
|---|---|
| Lumens | 2894 - 5500LM |
| Wattage | 21W / 30W / 40W |
| Voltage | 120-277V |
| Operating Temperature | -40°F-104°F |
| Dimmable | Dimmable |
| Dimming Details | 0-10V Dimming |
| Color Temperature | 3000K, 4000K, 5000K |
| CRI | 85+ |
| Beam Angle | 100°x60° |
| IP Rating | IP65 |
| Moisture Rating | Wet Rated |
| J-Box Included | No |
| Power Type | Hardwired |
| Mount Type | Ceiling |
| Housing | Aluminum |
| Material | Aluminum / PC Frosted Lens |
| Certifications | DLC, ETL, RoHS |
| Switching Cycles | 50,000 |
| Lifetime | 50,000 Hours |
| Warranty | 5-Year Manufacturer's Warranty |
