PIR Sensor for High Bays

XS-HD09VR-PHClick to Copy
$18.99

  • Dimming : Dimmable
$18.99

Color Guide
Color Temperature Guide Color Temperature Guide

Volume Discounts automatically applied for orders $500+

Free Shipping on orders $100+

Ships within 1 business day
Overview

This PIR motion sensor is designed for LED linear & UFO high bays. The sensor has dimming capabilities which automatically adjusts brightness when you're in the room. With its 40ft detection range, it provides reliable motion detection across large spaces. It can also withstand wet areas with its IP65 rating & can be controlled with a wireless remote for dusk-to-dawn capabilities. Install this motion sensor for quick, simple motion-based lighting!



 Features

    • 40ft detection range/angle
    • 1 sensor required per high bay

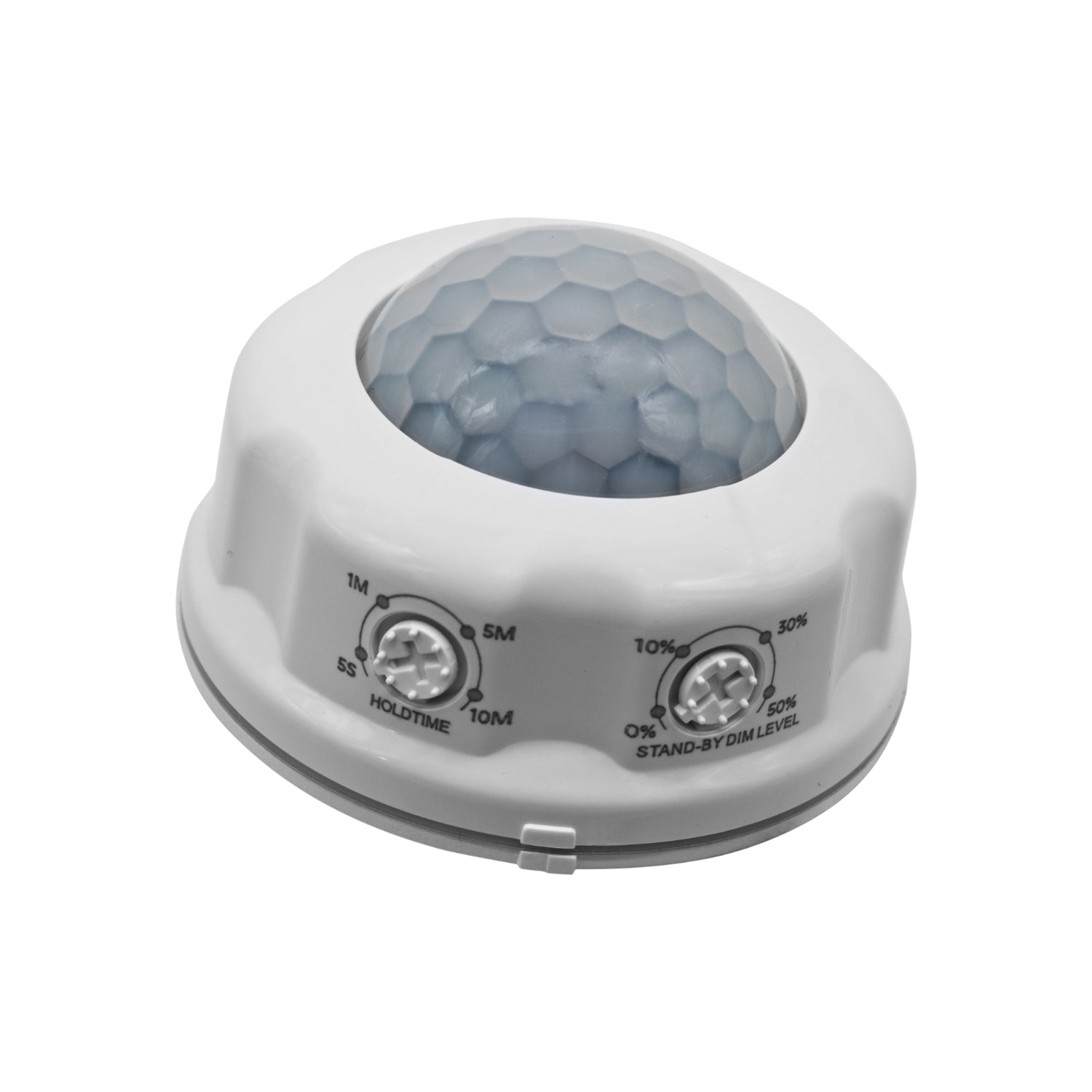

    • Adjustable light hold time 5 sec - 10 min
    • Easy dynamic control (**remote required):
      • Adjustable detection area
      • Dusk-to-dawn & daylight threshold capabilities

                      Default sensor settings:
                      - Hold time: 30 seconds
                      - Stand-by dimming level: 10%
                      - Detection range: 100%
                      - Daylight sensor: Disabled
                      - Stand-by period: 1 minute



 Compatible Fixtures



XS-LBHC-210W-4050KLV-M XS-HBF-240W-4050K-80LV-C
XS-LBHC-210W-4050KHV-M XS-HBF-310W-50K-80LV-C
XS-HBF-240W-4050K-80LV-C-WH XS-LHBC-310W-4050KLV-L
XS-HBF-310W-4050K-80LV-C-WH XS-HBF-240W-4050K-80LV-C-WH+XPCR-HBL

Overview

This PIR motion sensor is designed for LED linear & UFO high bays. The sensor has dimming capabilities which automatically adjusts brightness when you're in the room. With its 40ft detection range, it provides reliable motion detection across large spaces. It can also withstand wet areas with its IP65 rating & can be controlled with a wireless remote for dusk-to-dawn capabilities. Install this motion sensor for quick, simple motion-based lighting!



 Features

    • 40ft detection range/angle
    • 1 sensor required per high bay
    • Adjustable light hold time 5 sec - 10 min
    • Easy dynamic control (**remote required):
      • Adjustable detection area
      • Dusk-to-dawn & daylight threshold capabilities

                      Default sensor settings:
                      - Hold time: 30 seconds
                      - Stand-by dimming level: 10%
                      - Detection range: 100%
                      - Daylight sensor: Disabled
                      - Stand-by period: 1 minute



 Compatible Fixtures



XS-LBHC-210W-4050KLV-M XS-HBF-240W-4050K-80LV-C
XS-LBHC-210W-4050KHV-M XS-HBF-310W-50K-80LV-C
XS-HBF-240W-4050K-80LV-C-WH XS-LHBC-310W-4050KLV-L
XS-HBF-310W-4050K-80LV-C-WH XS-HBF-240W-4050K-80LV-C-WH+XPCR-HBL

Details

MOTION ACTIVATED - This convenient, easily installed motion activated sensor detects movement to automate lighting in your warehouse, office building, or other commercial spaces. Use this microwave sensor to only illuminate when necessary. Great for safety purposes to detect movement after hours.

 INCREASE ENERGY SAVINGS - Attached motion sensor turns on your light only when you need it to reduce your wattage consumption.

Specifications

PIR Sensor for High Bays Specifications Download Specs
Brand NSL
Operating Temperature -40°F - 158°F
Dimmable Dimmable
Dimming Details 0-10V Dimming
IP Rating IP65
Motion Sensor Yes
Sensor Details See specification sheet for full details about motion detection.
Range 40’ range sensitivity detector
