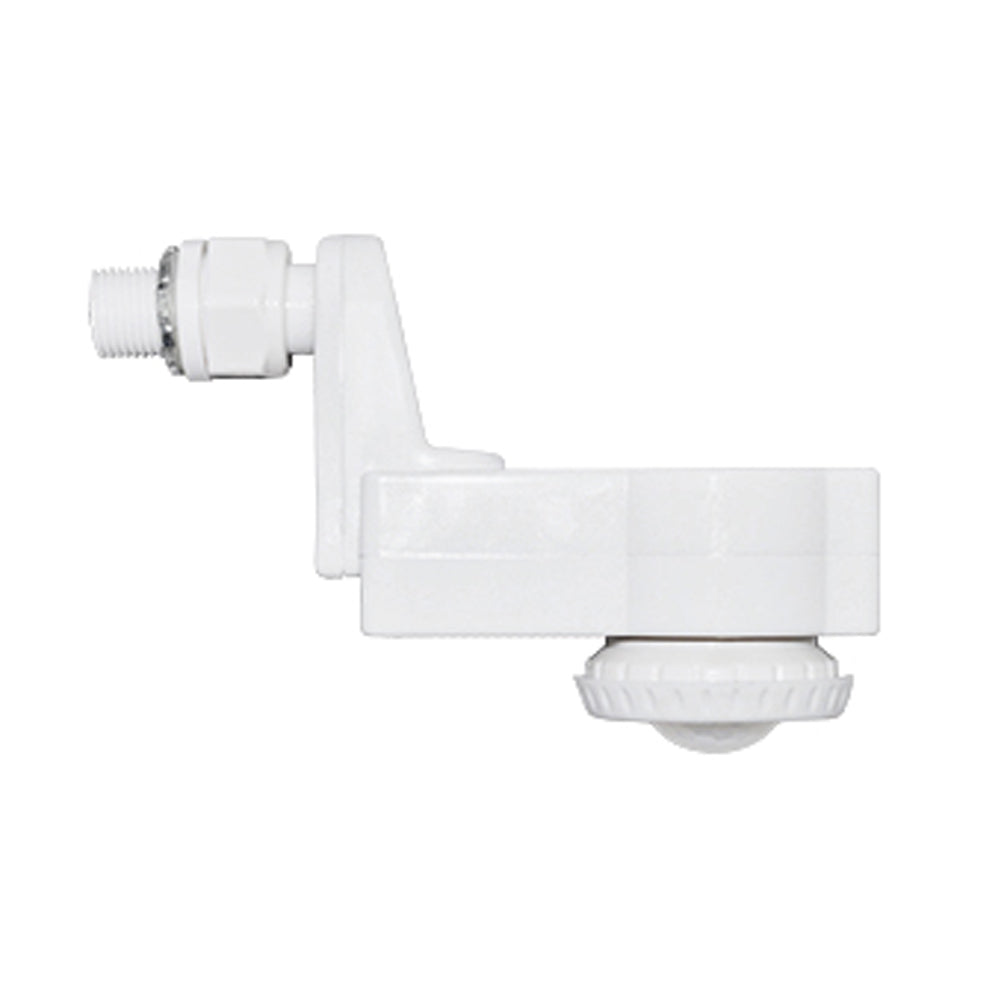

360° Outdoor Bi-Level PIR Sensor for Vapor Tight Fixtures
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayThis 360° Outdoor Bi-Level and Daylight PIR Sensor provides multi-level control based on motion and/or daylight contribution. It offers 40 ft. of height range sensitivity detector and adjustable light levels and stand-by time.
- High Mode: 10V
- Low Mode: 1V (Standby)

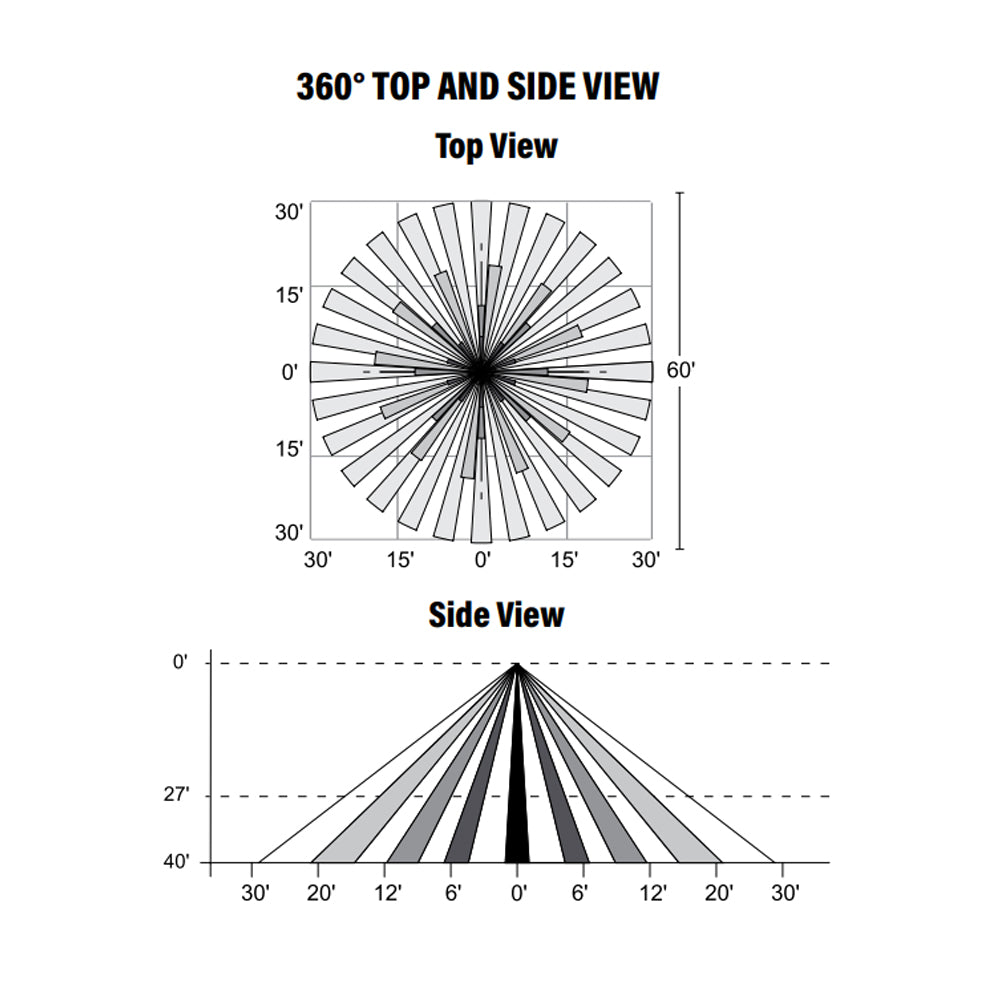

- 60ft Detection diameter
- 360° Detection coverage
- 1/2" knockout, hardwired, mounting
- IP66 Wet rated - Indoor or outdoor rated
- 2 year manufacturer's warranty
Compatible Fixtures:
PRE-17355, PRE-27355, PRE-47355, PRE-57355, PRE-77355, PRE-87355, PRE-08355, PRE-18355, PRE-60655, PRE-80655
Overview
This 360° Outdoor Bi-Level and Daylight PIR Sensor provides multi-level control based on motion and/or daylight contribution. It offers 40 ft. of height range sensitivity detector and adjustable light levels and stand-by time.
- High Mode: 10V
- Low Mode: 1V (Standby)
- 60ft Detection diameter
- 360° Detection coverage
- 1/2" knockout, hardwired, mounting
- IP66 Wet rated - Indoor or outdoor rated
- 2 year manufacturer's warranty
Compatible Fixtures:
PRE-17355, PRE-27355, PRE-47355, PRE-57355, PRE-77355, PRE-87355, PRE-08355, PRE-18355, PRE-60655, PRE-80655
Details
● MOTION ACTIVATED - This convenient, easily installed motion activated sensor detects movement to automate lighting in your gymnasium, retail store, or other commercial space. Use this occupancy sensor to only illuminate when necessary. Great for safety purposes in a warehouse or large storeroom or for security to detect movement after hours.
● INCREASE ENERGY SAVINGS - Attached motion sensor turns on your light only when you need it to reduce your wattage consumption. Light will turn off after the adjustable time delay has been set between 10 sec. - 30 min. of no motion detected.
● BENEFITS - 2-Year Manufacturer's Warranty.
Specifications
| 360° Outdoor Bi-Level PIR Sensor for Vapor Tight Fixtures Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Voltage | 120-277V |
| Operating Temperature | -40°F-158°F |
| Power Type | Hardwired |
| Motion Sensor | Yes |
| Sensor Type | Yes, Infrared Photocell Sensor |
| Sensor Details | See install manual for full details about motion detection and how to set DIP Switches. |
| Range | 40’ range sensitivity detector |
| Certifications | UL |
| Warranty | 2-Year Manufacturer's Warranty |
