Recessed Lighting Can, 6 Inch, New Construction

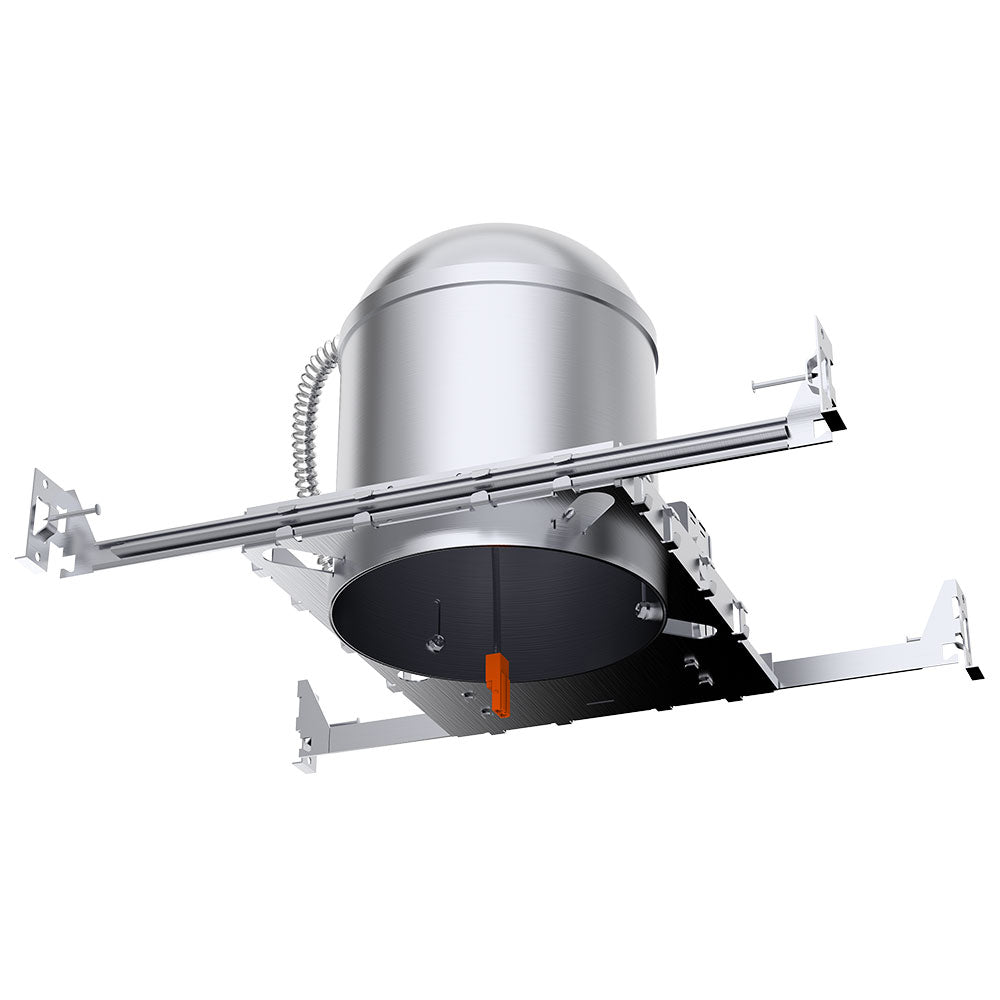

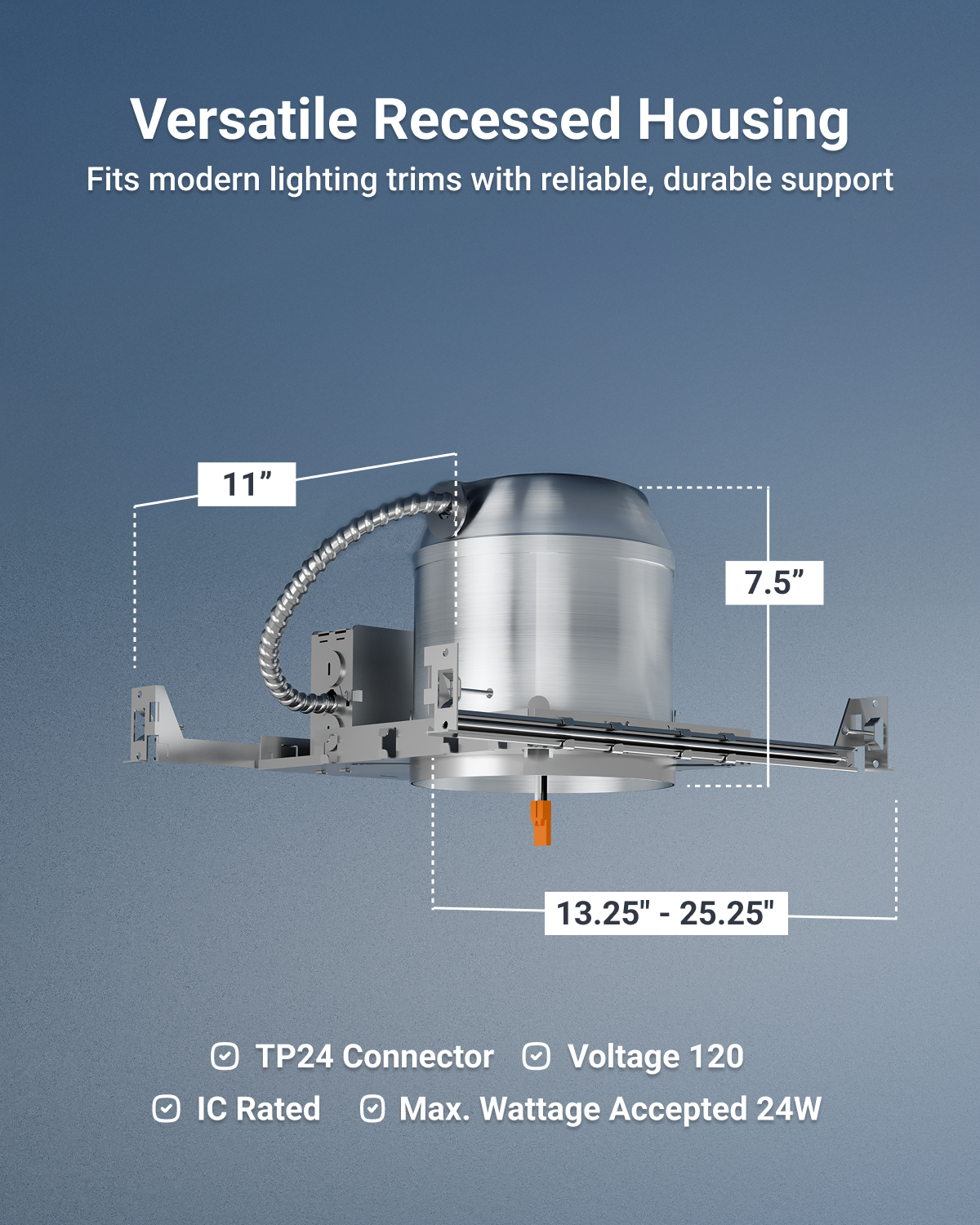

Adjustable hangars, and included junction box, and TP24 connector with an airtight housing on this 6-inch recessed can for new construction provide all you need to install downlights between joists or in suspended ceilings. This recessed can accepts 24W LED retrofit lights. The 6-inch can is IC rated for installation near insulation in your ceiling. Install this can quickly so you can place downlights where you need them in your new home, expanded new construction or office.

Recessed Lighting Can, 6 Inch, New Construction

Add To Cart
SKU CN_NC6-1PKClick to Copy
Free Shipping Over $100Free shipping on orders over $100!
  • Overview
  • Details
  • Reviews
  • Specs
  • Pro Tips
  • Support

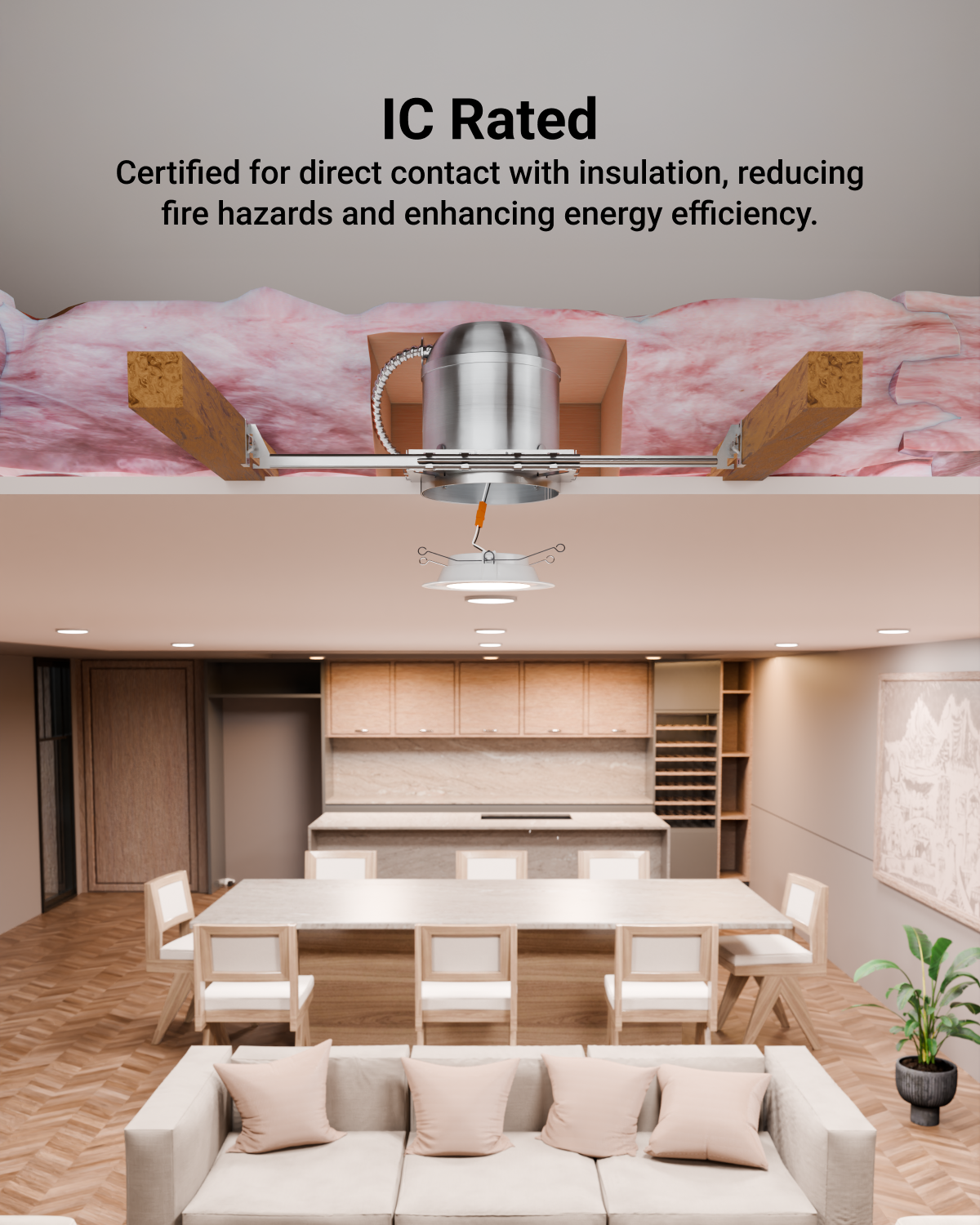

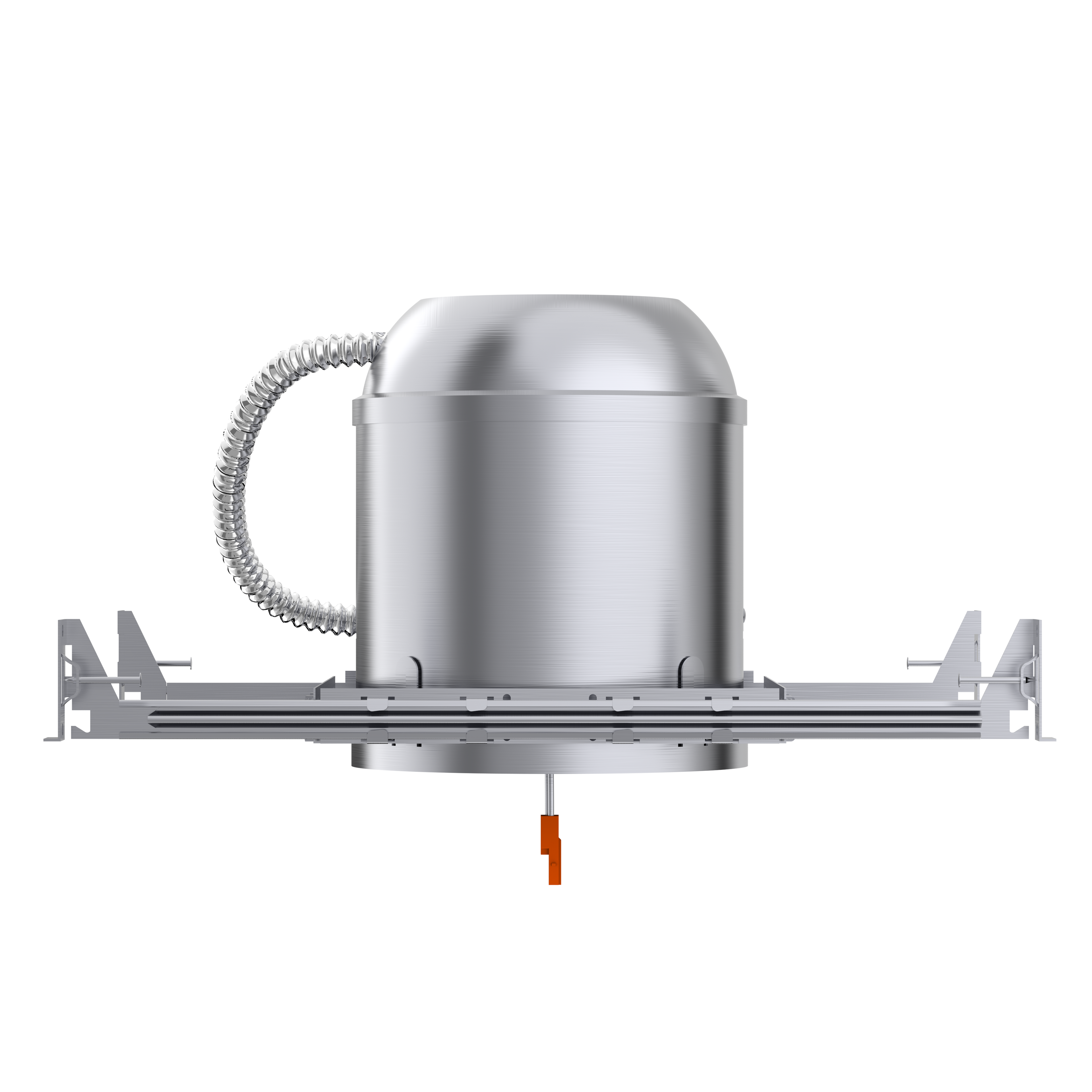

  • Airtight Sunco 6-inch recessed can for new construction features adjustable bar hangars to install in joist-type or suspended ceilings, flexible conduit and junction box are included, as is a TP24 connector. Can is IC rated for installation near ceiling insulation. This new construction recessed can meets ASTM standard E283-04. It is UL Listed. Commercial lighting 120/277V. Will accept 24W bulb maximum. LED retrofit downlight bulb not included and available separately.Sunco New Construction Recessed Cans are airtight and thermally protected. The airtight design keeps A/C and heating from leaking through housing. These 6-inch cans for new construction are designed to be surrounded by insulation. Accepts wet rated or damp rated LED retrofits with 24W maximum. Image shows new construction housing and adjustable bar hangars surrounded by pink insulation between wooden joists.Use Sunco's air-tight and IC Rated 4 inch cans for your new construction project. Easy installation of 6-inch Can. 1. For wood joists, extend bar hangar between joists and use included nails to secure. For suspended ceilings, extend hangar 1-inch beyond T-bars and rest fixture on T-bars. Secure with wire. 2. Connect can thru junction box. Be sure to connect ground lead and always consult local electrical codes. 3. Easily add a retrofit LED downlight using TP24 connector to power the LED bulb.Commercial Quality with 120/277V, TP24 connector and Junction box included. IC rated for safety. Sunco 6-inch New Construction Can fits in places as small as 6-inches. Title 24 Compliance with energy efficiency standards. Image shows the 6-inch recessed can for new construction installed between wooden joists with its adjustable bar hangars and nails. Clearly see the flexible conduit leading to the j-box behind the airtight can.
    6" inch new construction recessed lighting can. IC Rated. High quality easy to install.
  • Recessed Lighting Can, 6 Inch, New Construction Specifications Download Specs
    Voltage 120-277V
    Dimmable Non-Dimmable
    Moisture Rating Wet & Damp
    IC Rated Yes
    Operating Temperature Max 194°F
    Warranty 10-Year
    Material Aluminum
    Included Components TP24 connector, Mounting Equipment
    J-Box Included Yes
    Airtight Yes

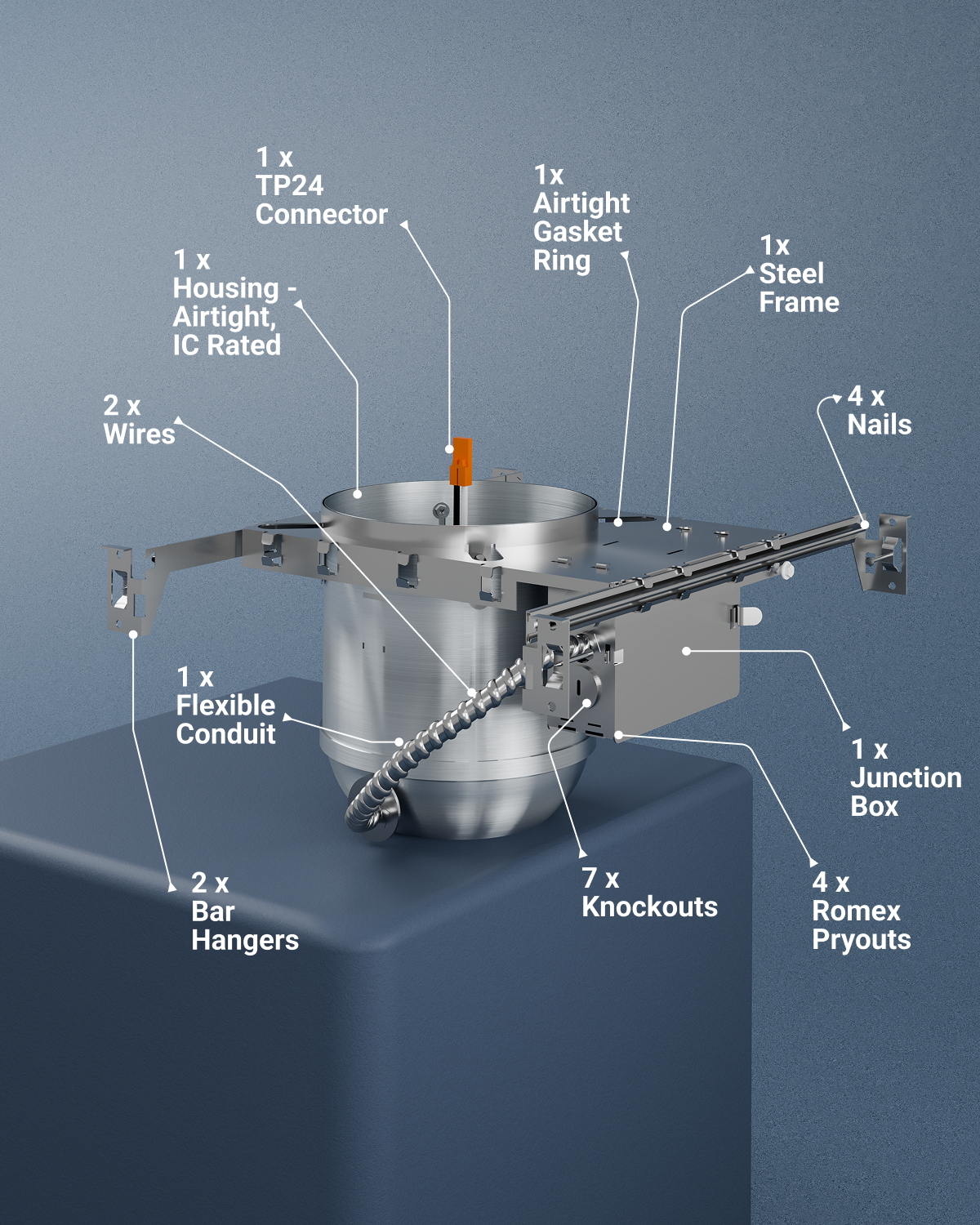

    Housing Housing can be removed from frame for access to the junction box, J-box contains one 1-1/8” knockout, six 7/8” knockouts, and four Romex pryouts with strain relief.
    Power Type Hardwired
    Mount Type Ceiling
    Compliance Meets ASTM Standard E283-04
    Certifications UL
  • ● AIRTIGHT & IC RATED - Sunco's new construction cans are airtight and thermally protected and designed to be installed in the ceiling surrounded by insulation. This can is IC Rated. Sunco's cans won't overheat and cause a fire in the roof or overhead joist space. Airtight design (meets ASTM Standard E283-04) to keep air conditioning or heating from leaking out of the home through the housing.

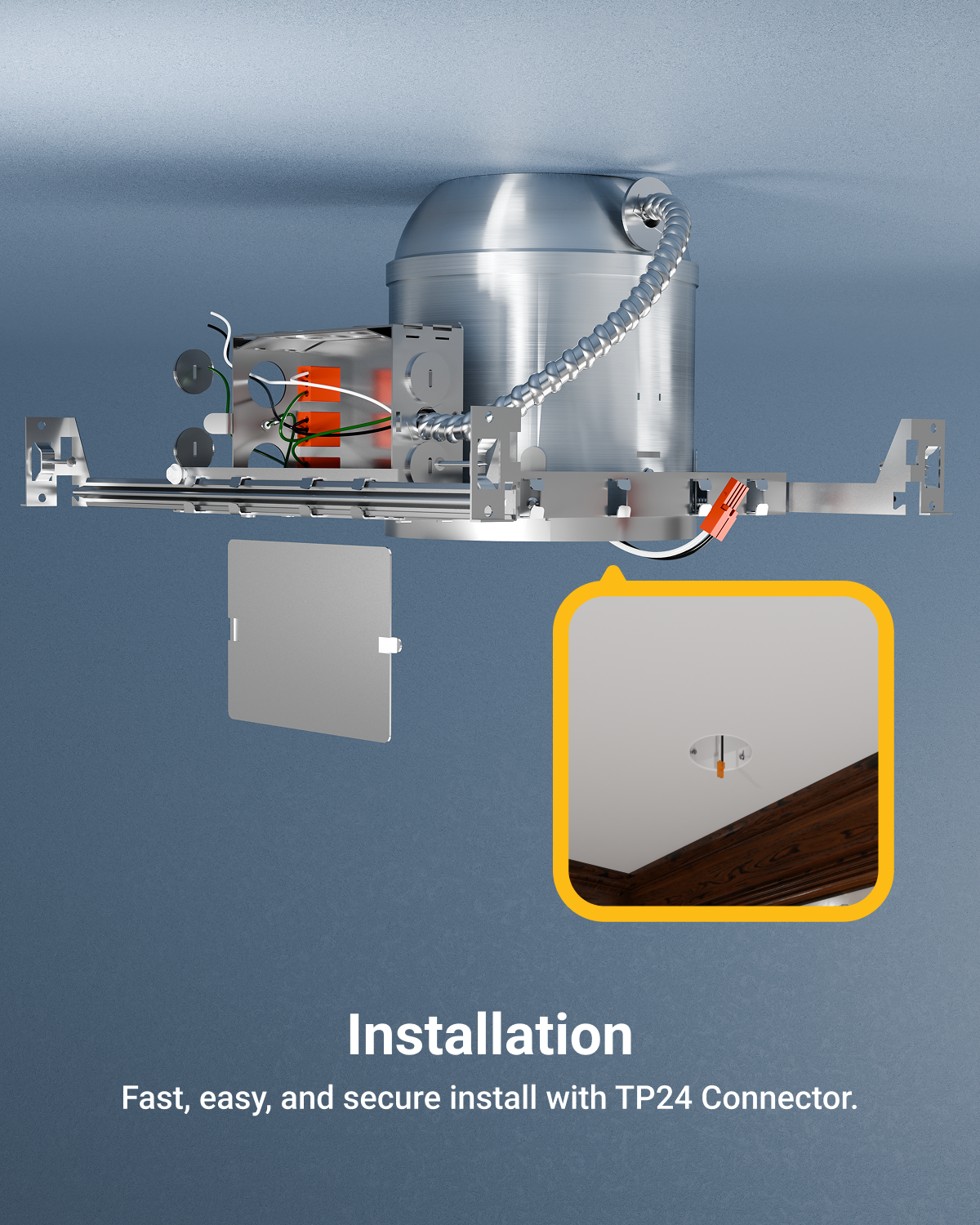

    ● SIMPLE INSTALL - Follow our easy instruction guide for a fast and secure setup! Sunco's direct wire new construction cans with junction box are installed to the framing with the bar hangers (prior to installing drywall). TP24 connector included.

    ● UL CERTIFIED - We uphold the highest standards for all our products by testing each product for optimal performance and safety.

    ● NOTE - This is the can only. Retrofit LED downlights are sold separately. 24 watts maximum accepted.

    ● SUNCO BENEFITS - 10-Year Warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.
