Recessed Lighting Can, 4 Inch, New Construction

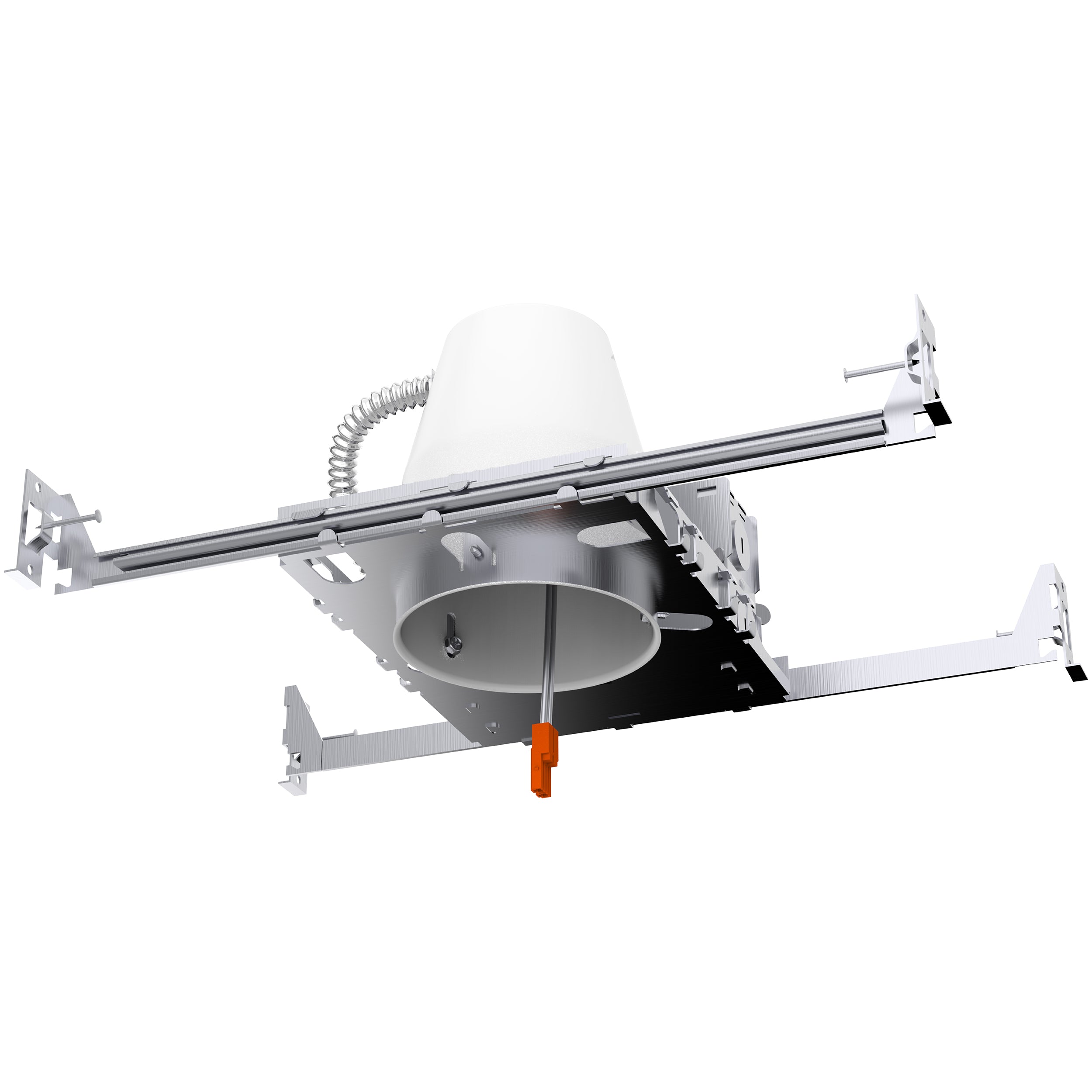

This air tight and IC rated 4-inch Recessed Can for new construction features a j-box, adjustable bar hangars (for joist type installation or suspended ceilings), a TP24 connector and is IC rated for safety. This commercial rated can housing uses 120/277V. Image shows the new construction recessed lighting can. Quickly install this 4-inch can in framing with our simple install manual before drywall and ceiling is finished. Includes can only. LED not included.
This 4-inch recessed can for new construction offers a slim profile, IC rating, TP24 connector, J-box, and adjustable hangars. The hangars work in both joist type ceilings and suspended ceilings. This recessed can accepts an 18W bulb maximum. It has an airtight design that meets ASTM standard E283-04 and keeps A/C and heating moisture from leaking through the housing. Safely use insulation near the IC rated can in an overhead joist space or ceiling crawl space.
4-inch Recessed Can features a TP24 connector for power through the included junction box. This can is easy to install and accepts retrofit LED bulbs (sold separately). It runs on 120/277V electricity and is IC rated for installation in a ceiling near insulation. New Construction cans are designed to fit in suspended ceilings and joist-type ceilings prior to adding drywall. Here, a couple changes out a light bulb to upgrade to LED.

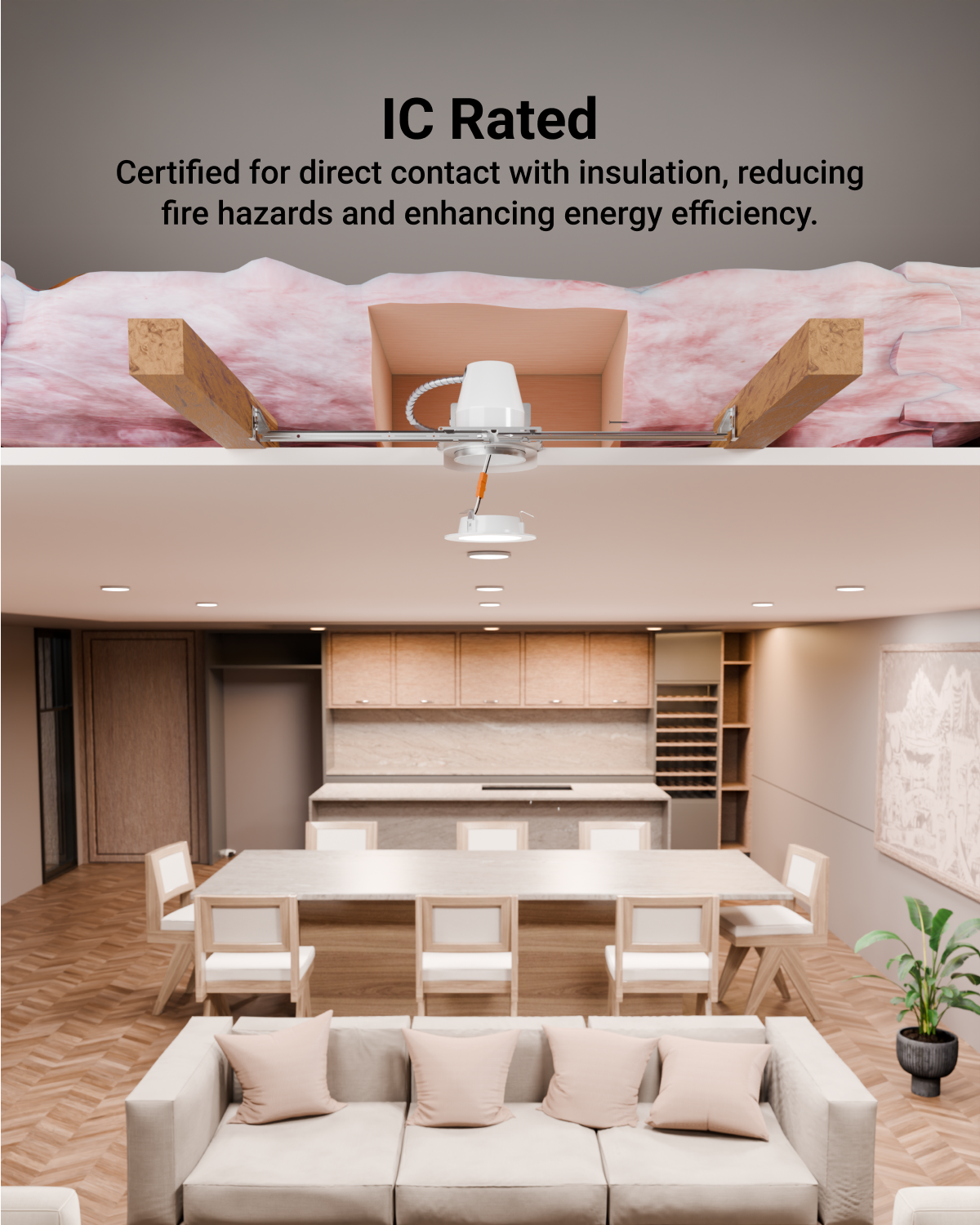

Safety First! Sunco recessed cans are IC rated, meaning the can is thermally protected and designed to be installed in the ceiling surrounded by insulation. The image shows the 4-inch Recessed Can surrounded by insulation. The adjustable bar hangars support our 4-inch can between joists in new construction, as shown here.

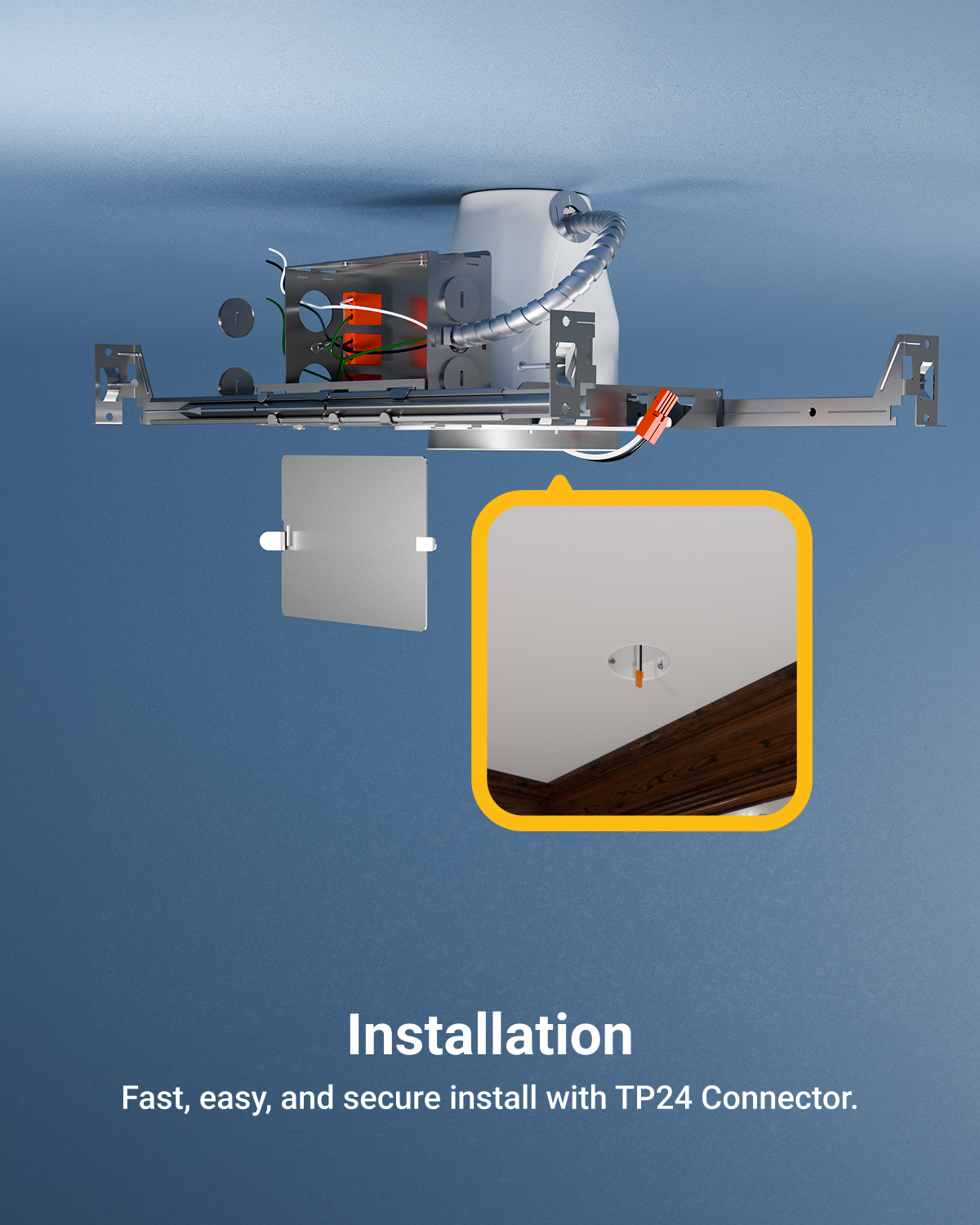

Installation is fast and easy with the Sunco 4-inch Recessed Can for new construction. The included junction box and TP24 connector make install faster. Accepts retrofit LED bulbs up to 18W maximum. LED retrofits are sold separately. Image shows a line drawing of the New Construction Recessed Can with its j-box, conduit, adjustable bar hangars, airtight housing and TP24 connector.
The safety and quality of our Sunco recessed cans is proudly backed by a UL certificate. It is also airtight and IC rated for safety, along with its UL Listing. Sunco offers an industry leading warranty on all our products. This 4-inch recessed can has a 10-year warranty. Sunco is American owned and operated. We are based in the USA.

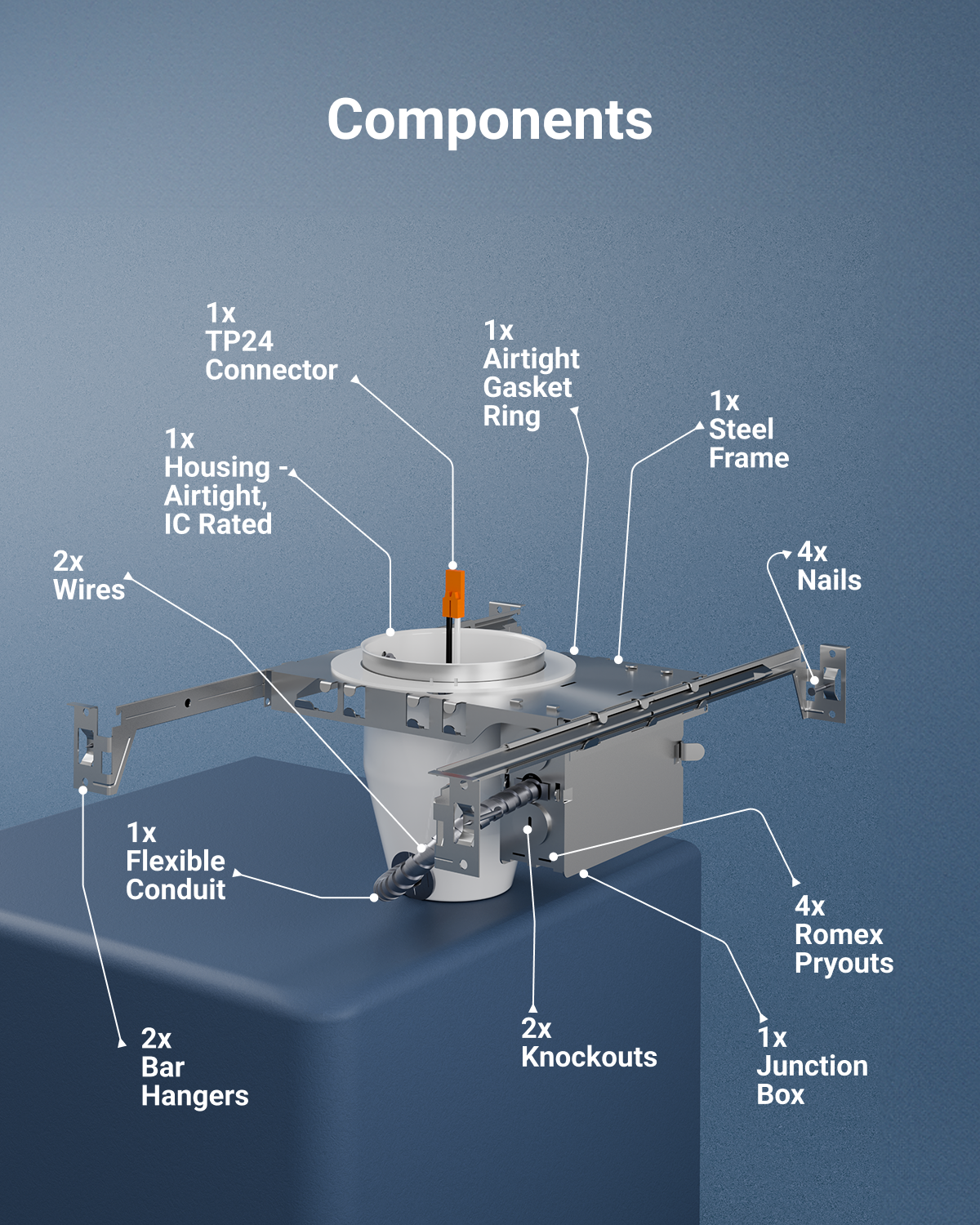

Components of the Sunco 4-inch Recessed Can, New Construction, include: 1x junction box, 4x knockouts, 1x airtight housing (IC Rated), 2x wires, 1x TP24 Connector, 1x flexible conduit, 2x adjustable bar hangars, 4x nails, 1x airtight gasket ring on steel frame. Image shows all components separated so you can easily identify them.

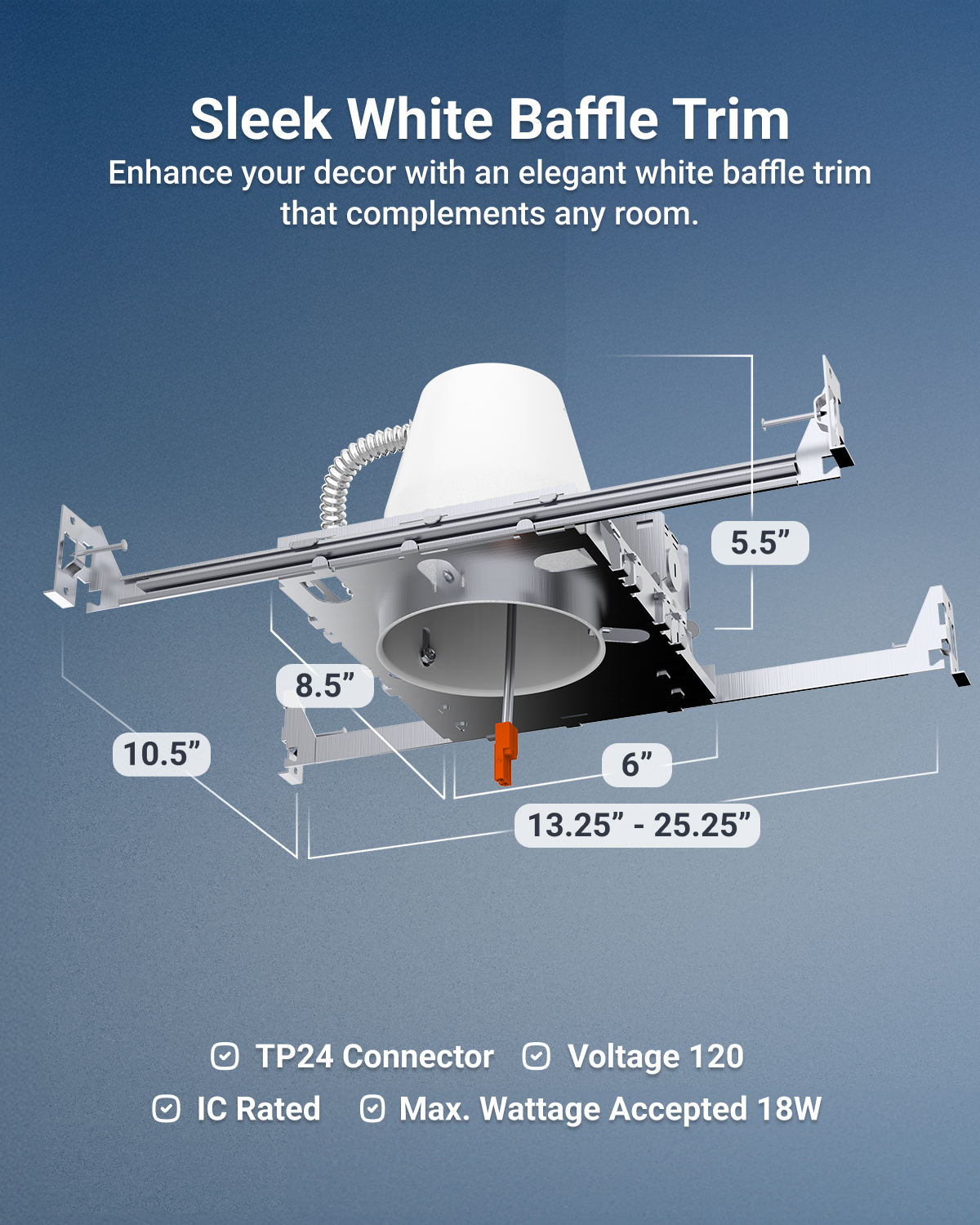

Dimensions of 4-inch recessed can from Sunco Lighting. This new construction recessed lighting can is 5.5-inches height, 5.97-inches wide, and 8.5-inches long (at longest length with adjustable hangars). J-box and flexible conduit are attached to the steel frame for easy install. Airtight and IC rated housing includes a TP24 connector to accept a retrofit LED (sold separately).
https://youtu.be/a8Vy4wm4GlY
This air tight and IC rated 4-inch Recessed Can for new construction features a j-box, adjustable bar hangars (for joist type installation or suspended ceilings), a TP24 connector and is IC rated for safety. This commercial rated can housing uses 120/277V. Image shows the new construction recessed lighting can. Quickly install this 4-inch can in framing with our simple install manual before drywall and ceiling is finished. Includes can only. LED not included.
This air tight and IC rated 4-inch Recessed Can for new construction features a j-box, adjustable bar hangars (for joist type installation or suspended ceilings), a TP24 connector and is IC rated for safety. This commercial rated can housing uses 120/277V. Image shows the new construction recessed lighting can. Quickly install this 4-inch can in framing with our simple install manual before drywall and ceiling is finished. Includes can only. LED not included.

Recessed Lighting Can, 4 Inch, New Construction

SKU CN_NC4-1PK
Add To Cart
2 reviews
$11.65
SKU CN_NC4-1PKClick to Copy
Quantity
Free Shipping Over $100Free shipping on orders over $100!
RELATED TAGS:
Cans
Features IC Rated
Features Junction Box
Housing
IC Rated
Junction box
New Construction
Recessed
Size 4-Inch
  • Overview
  • Details
  • Reviews
  • Specs
  • Pro Tips
  • Support

  • The 4-inch new construction recessed can from Sunco Lighting is designed for New Construction. This means it fits inside your ceiling prior to the installation of a ceiling. The adjustable bar hangars attach to joists, whether that be wood joists or metal joists in a standard ceiling. A man in a hard hat installs the Sunco 4-inch New Construction Can between metal joists. You can see the TP24 connector, the junction box, and the adjustable bar hangars.All Sunco recessed cans are IC Rated, meaning the can is thermally protected and designed to be installed in the ceiling surrounded by insulation. Image shows pink insulation around the can in a ceiling, between joists. This new construction recessed can is designed to accept wet rated or damp rated retrofit downlights. It is dimmable LED retrofit ready. The airtight design prevents leaks from air conditioning and heating through the can. Can includes j-box. Does not include LED.Bar hangars are adjustable from 13 5/8 inches to 25-inches. Easy installation. 1. Lists both joist and suspended ceilings details with installation details. A full install manual is available in support tab or from customer service. 2. Connect can power through junction box. Connect ground lead and consult local electrical codes.Commercial quality with 120/277V. Our new construction 4-inch recessed can housing fits in places as small as 4-inches high. This can is IC rated for safety and includes a UL listing certificate. Install it in the ceiling near compatible insulation. Includes a TP24 connector to power a retrofit LED downlight (not included). Sunco is based in the USA and is American owned and operated.

  • Customer Reviews
    5.0 Based on 2 Reviews
    5 ★
    100%
    2
    4 ★
    0%
    0
    3 ★
    0%
    0
    2 ★
    0%
    0
    1 ★
    0%
    0
    Write a Review Ask a Question

    Thank you for submitting a review!

    Your input is very much appreciated. Share it with your friends so they can enjoy it too!

    Filter Reviews:
    LB
    09/30/2021
    Lee B.
    United States United States

    Excellent value

    Great. Very easy to order and install

    Recessed Lighting Can, 4 Inch, New Construction
    Share   |   Facebook  •  Twitter
    Was this helpful?  0    0
    AK
    07/16/2021
    Andrew K.
    United States United States

    Good product for a good price

    I have installed several of these light cans and all of them have been well made. They are easy to install.

    Recessed Lighting Can, 4 Inch, New Construction
    Share   |   Facebook  •  Twitter
    Was this helpful?  0    0
  • Recessed Lighting Can, 4 Inch, New Construction Specifications Download Specs
    SKU
    Voltage 120-277V
    Dimmable Non-Dimmable
    Moisture Rating Wet & Damp
    IC Rated Yes
    Operating Temperature Max 194°F
    Warranty 10-Year
    Material Steel
    Included Components TP24 connector, Mounting Equipment
    J-Box Included Yes
    Airtight Yes
    Housing Housing can be removed from frame for access to the junction box. Contains one 1-1/8” knockout, six 7/8” knockouts, and four Romex pryouts with strain relief.
    Power Type Hardwired
    Mount Type Ceiling
    Compliance Meets ASTM Standard E283-04
    Certifications UL

  • ● AIRTIGHT & IC RATED - Sunco's new construction cans are airtight and thermally protected and designed to be installed in the ceiling surrounded by insulation. This can is IC Rated. Sunco's cans won't overheat and cause a fire in the roof or overhead joist space. Airtight design (meets ASTM Standard E283-04) to keep air conditioning or heating from leaking out of the home through the housing.

    ● SIMPLE INSTALL - Follow our easy instruction guide for a fast and secure setup! Sunco's direct wire new construction cans with junction box are installed to the framing with the bar hangers (prior to drywall). TP24 connector included.

    ● UL CERTIFIED - We uphold the highest standards for all our products by testing each product for optimal performance and safety.

    ● NOTE - This is the can only. Retrofit LED downlights are sold separately. Accepts maximum 18 watts.

    ● SUNCO BENEFITS - 10-Year Warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists

    ulus company

  • Coming soon...

  • Manuals & Documentation

    Download Specs
    Download Manual
