LED Linear High Bay, 2ft, 220W, 30800 Lumens

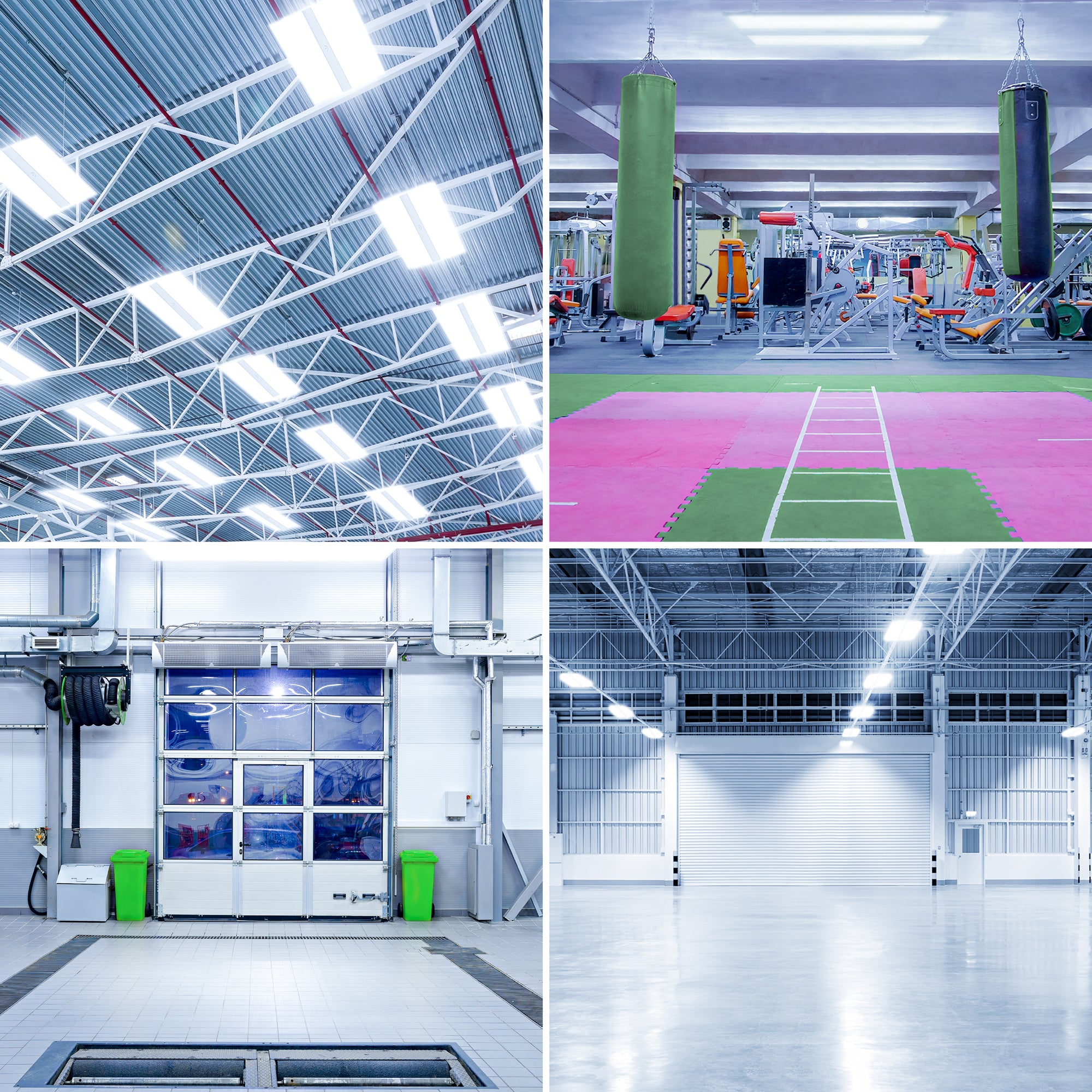

Dimmable 220W LED Linear High Bay from Sunco Lighting is 2 feet long and offers instant on, bright light for warehouse, gymnasium, workshop or industrial space. This 30800 lumen area light comes with chains for hanging high bay light fixture. The 220W LED is a 800W equivalent with a beam spread of 38ft to 72ft. The fixture is UL listed and FCC certified. Dim via 1-10V dimming.

LED Linear High Bay, 2ft, 220W, 30800 Lumens

SKU HB_L2-220W-5K-1PK
Add To Cart
SKU HB_L2-220W-5K-1PKClick to Copy
Free Shipping Over $100Free shipping on orders over $100!
  • Overview
  • Details
  • Reviews
  • Specs
  • Pro Tips
  • Support

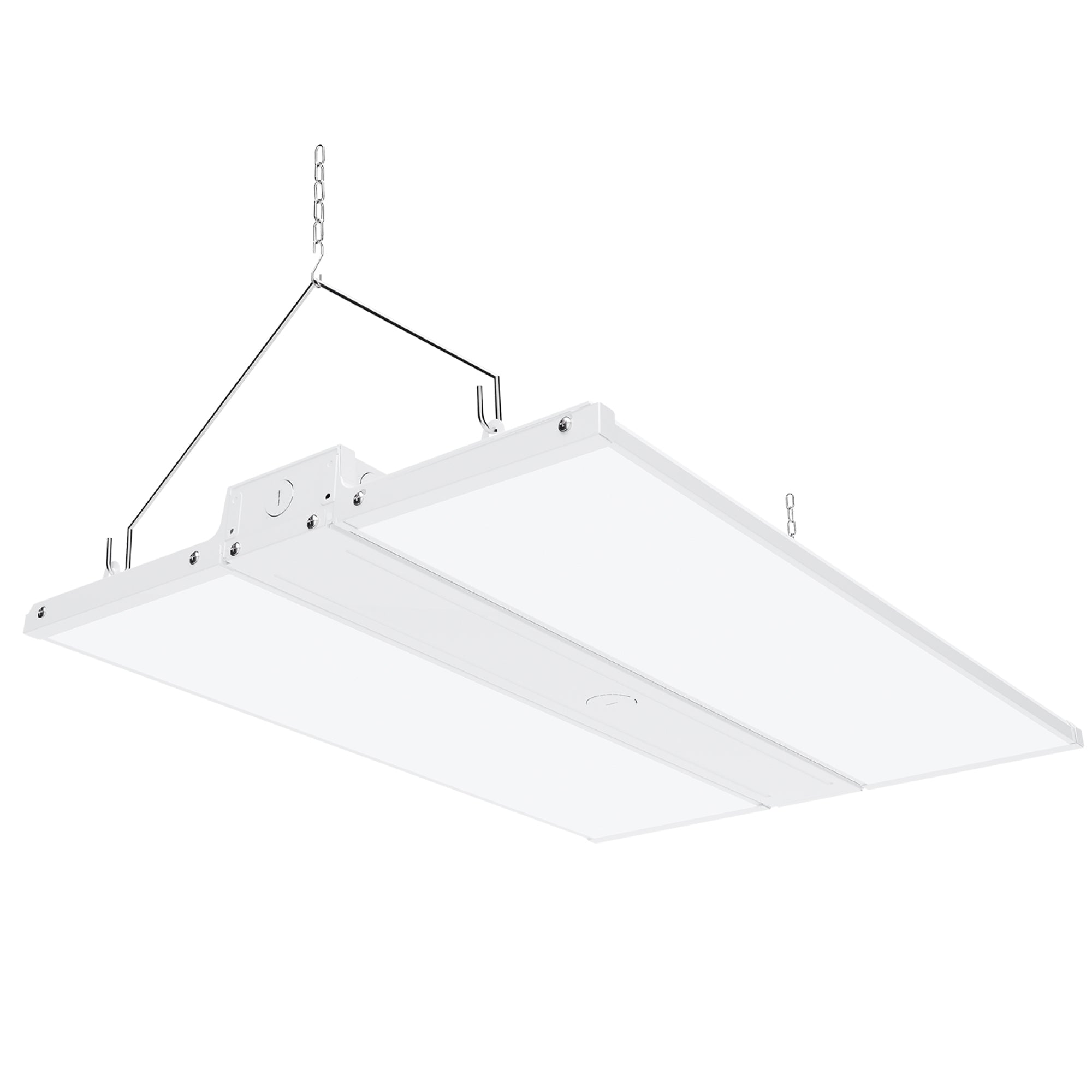

  • Sunco 220W Linear High Bay LED light fixture is an area light fixture that comes with hanging chains and V hooks to suspend the light where it is needed for bright, task lighting. The fixture features durable construction and is dimmable with a high lumen count of 30800 lumens. This 220W LED has an 800W equivalency to reduce power consumption. It also offers a 50,000 hour lifespan and is an integrated LED light fixture to reduce maintenance.
    Beam Spread. The 220W Linear High Bay LED light fixture offers illuminated coverage of varying beam spread depending on how high you hang the light from the ground. The image shows this area light suspended at three different heights. At 15 feet the light has a 38ft beam spread. At 20 feet the light has a 48 foot beam spread. At 30 feet the light has a 72 foot beam spread.

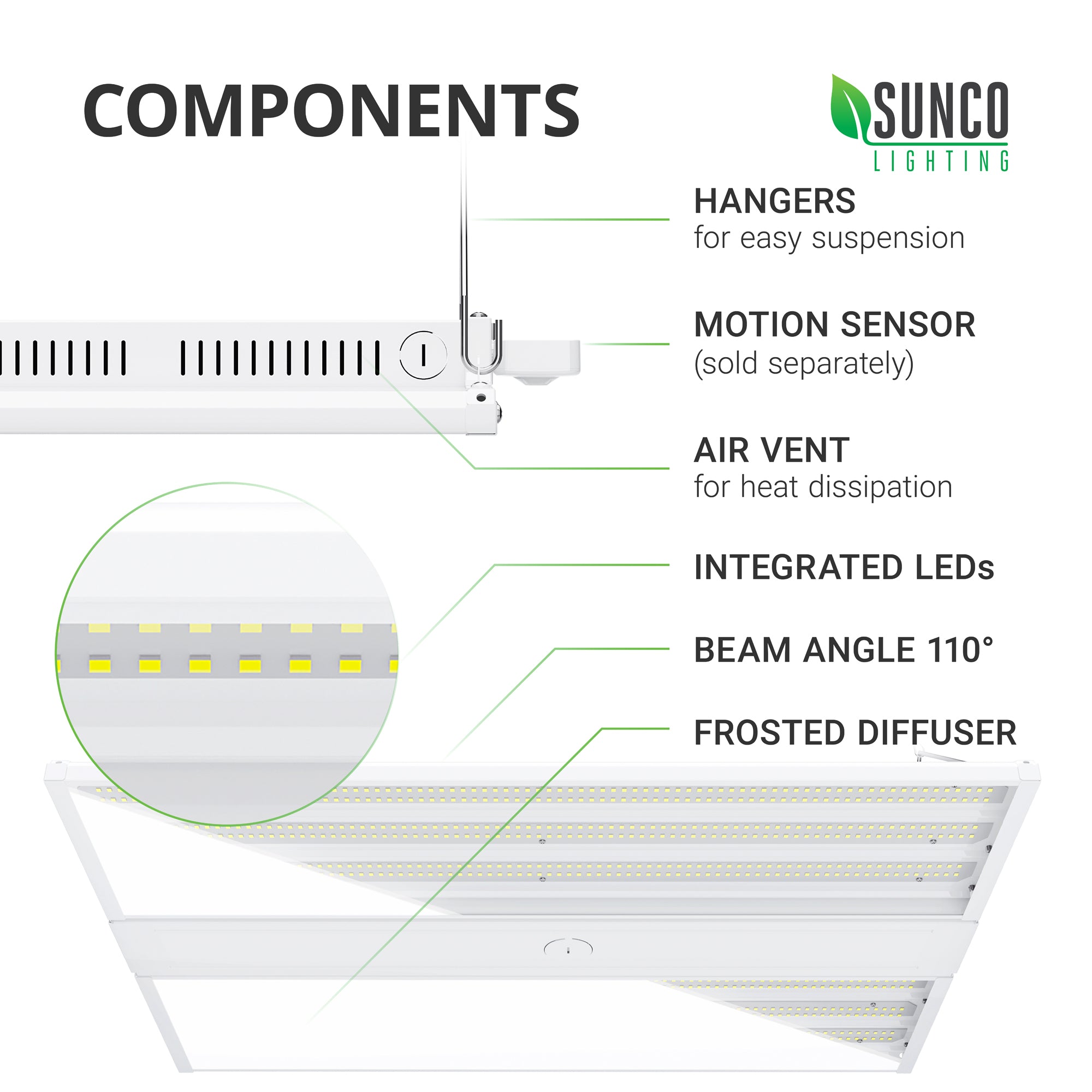

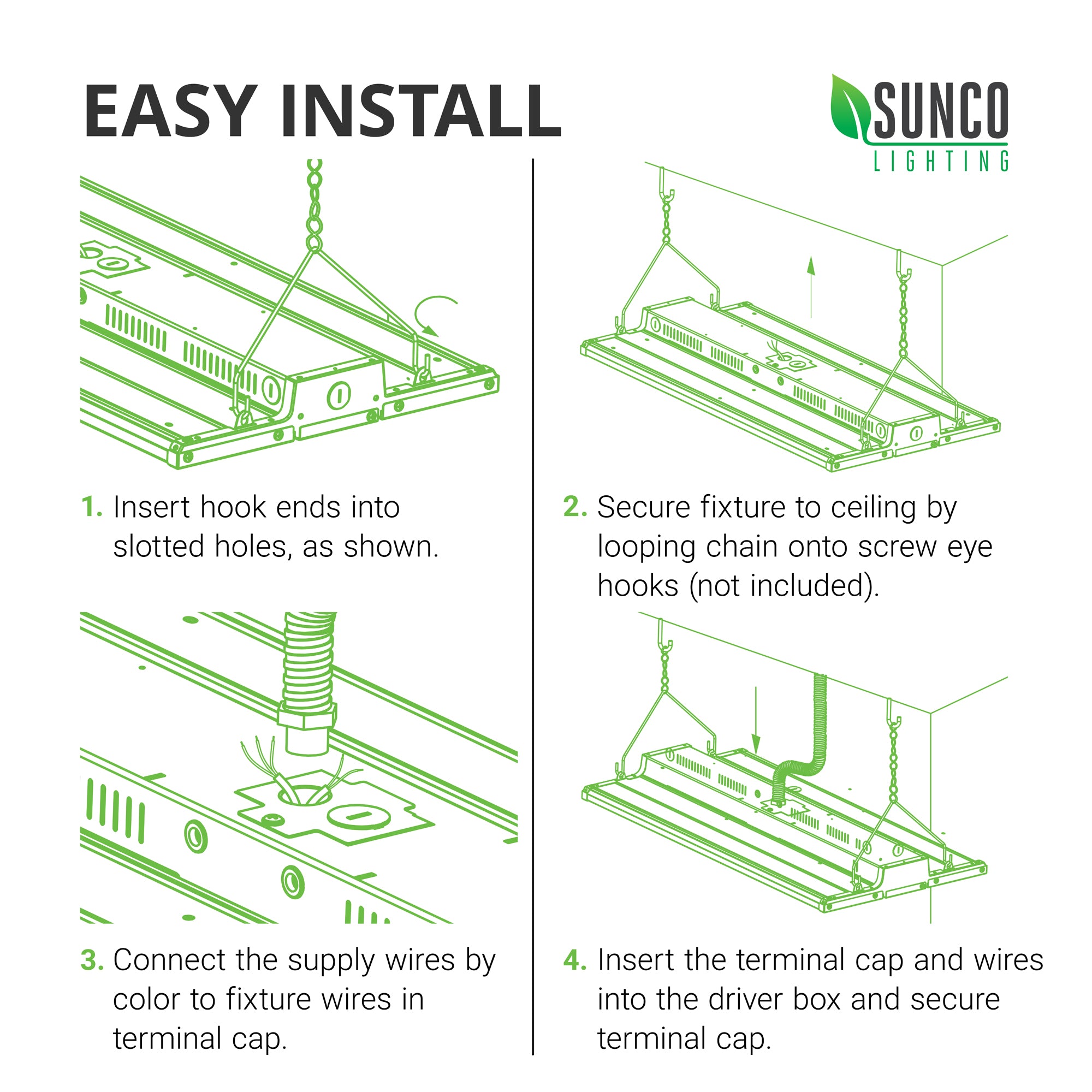

    Easy Install. The damp rated Sunco Linear High Bay can be installed with chain mount, conduit (not included), and surface mount (not included). Image points out the features and installation options. There are knockouts on the fixture for an added, optional motion sensor accessory. A 1/2 inch gap between the light body and LED driver make for excellent heat dissipation, so do the air vents along the side of the LED fixture body.
    Dimmable lighting. With 0-10V dimming, the DC voltage varies between 0 up to 10V to create the lowest dimming levels and scale the output of your LED light. A select list of dimmers is shown on this image. Customer service has the full dimmer list which is also available in our support tab. Sunco long-lasting LEDs use less power and have less harmful chemicals than traditional lighting options. With the Sunco Cares program  we make charitable donations to worthy conservation organizations.
    Install 220W instant on and 1-10Vdimmable area light fast with included chains.
  • LED Linear High Bay, 2ft, 220W, 30800 Lumens Specifications Download Specs
    SKU HB_L2-220W-5K-1PK
    Wattage 220W
    Voltage 120-277V
    Lumens 30800LM
    CRI 80+
    Wattage Equivalency 800W
    Color Temperature 5000K
    Beam Angle 110°
    Dimmable Dimmable
    Efficiency 140LM/W
    Operating Temperature -40°F-113°F
    Lifetime 50,000 Hours
    Warranty 10-Year
    Switching Cycles 50,000
    Material Aluminum
    Included Components Linear High Bay Fixture, x2 V Hook, x2 Linked Chain
    Certifications UL, FCC
    Compliance CA Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
    Moisture Rating Damp
    Power Type Hardwired
    Mount Type Hanging
    Sensor Details Add a Microwave Sensor Accessory to create motion sensor settings
    Class Dimming (Isolated, Class 2), Output Driver (Non-Class 2)
    Pull Chain No
    Dimming Details 1-10V Dimming
  • ● EASY INSTALL & OPERATION - Easily install this 220W rectangular high bay fixture via the included hanging chain and V hooks. Can also conduit mount or surface mount with purchase of separate accessories. Generates bright area light in your warehouse, workshop, gymnasium, or industrial space.

    ● DIMMABLE & WIDE BEAM SPREAD - Includes (DIM-, DIM+) wiring to connect to a compatible dimmer switch and dim via 1-10V dimming. 220W LED is a 800W equivalent.

    ● HIGH LUMINOUS EFFICACY & FEATURES - This suspended Linear High Bay fixture features a high luminous efficacy of 140lm/w. It includes a high quality non-isolated driver, is flicker free, and is suitable for dry or damp locations.

    ● OPTIONAL ACCESSORY - Add an occupancy sensor with the Sunco Microwave Motion Sensor for LED Linear High Bays (sold separately). Sensor detects movement to automatically illuminate your light fixture and reduce wattage consumption since it will only turn on when needed. Easily adjust these settings with DIP switches: sensitivity range (50ft max height to 30ft max radius), lux levels, hold time, standby level, and standby time.

    ● CERTIFIED PRODUCT - We uphold the highest standards by testing each product for optimal performance and safety. This light fixture is UL and FCC certified.

    ● BENEFITS - 10 year warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.

    ETLfcc us

  • Coming soon...

  • Manuals & Documentation

    Download Specs
    Download Manual
    Compatible Dimmer List
