Panasonic WhisperValue DC, Ventilation Fan, Condensation Sensor, 50/80/110 CFM

FV-0510VSC1Click to Copy
$128.99

  • Wattage : 10W
  • Warranty : 3-Year Manufacturer's Warranty
$128.99

Color Guide
Color Temperature Guide Color Temperature Guide

Volume Discounts automatically applied for orders $500+

Free Shipping on orders $100+

Ships within 1 business day
Overview

The WhisperValue® DC Fan, Condensation Sensor FV-0510VSC1 is the perfect solution for your ventilation needs. This innovative fan features a DC motor that delivers powerful, energy-efficient performance, making it an eco-friendly choice for your home or commercial space. It also includes a condensation sensor that automatically adjusts the fan speed to prevent excess moisture buildup and protect against mold and mildew. With its sleek, modern design and powerful performance, the WhisperValue® DC Fan is the perfect choice for your ventilation needs.

Features & Specifications

  • Built-in condensation sensor to control bathroom moisture
  • Elegant cover design made of Poly Pro material - Easily attaches to housing with torsion springs
  • Pick-A-Flow Speed Selector - Choose between 50/80/110 CFM
  • Noise (Sones): 0.3,0.4,0.9
  • Thermal fuse protection - provides protection against thermal damage or fires which may result from overcharging, overloads or other stresses

Recommended Application

  • Ideal for residential construction (Single & Multi-Family)
  • Manufactured homes
  • Bathrooms/restrooms
  • Laundry rooms







WhisperValue® DC™ (pre-installed condensation sensor) FV-0510VSC1 50-80-100 CFM, Lowest Profile, Ceiling or Wall Mount Fan

WhisperValue® DC™ FV-0510VSC1 Fan is the perfect multifamily solution; also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it actually fits in a 2x4 stud bay. The low profile, 3-3/8” housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere - in ceilings or walls.





ECM Motor - The Best Performing, Most Energy Efficient Motor Available

The revolutionary ECM motor with intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in the duct run and automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic ECM motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts

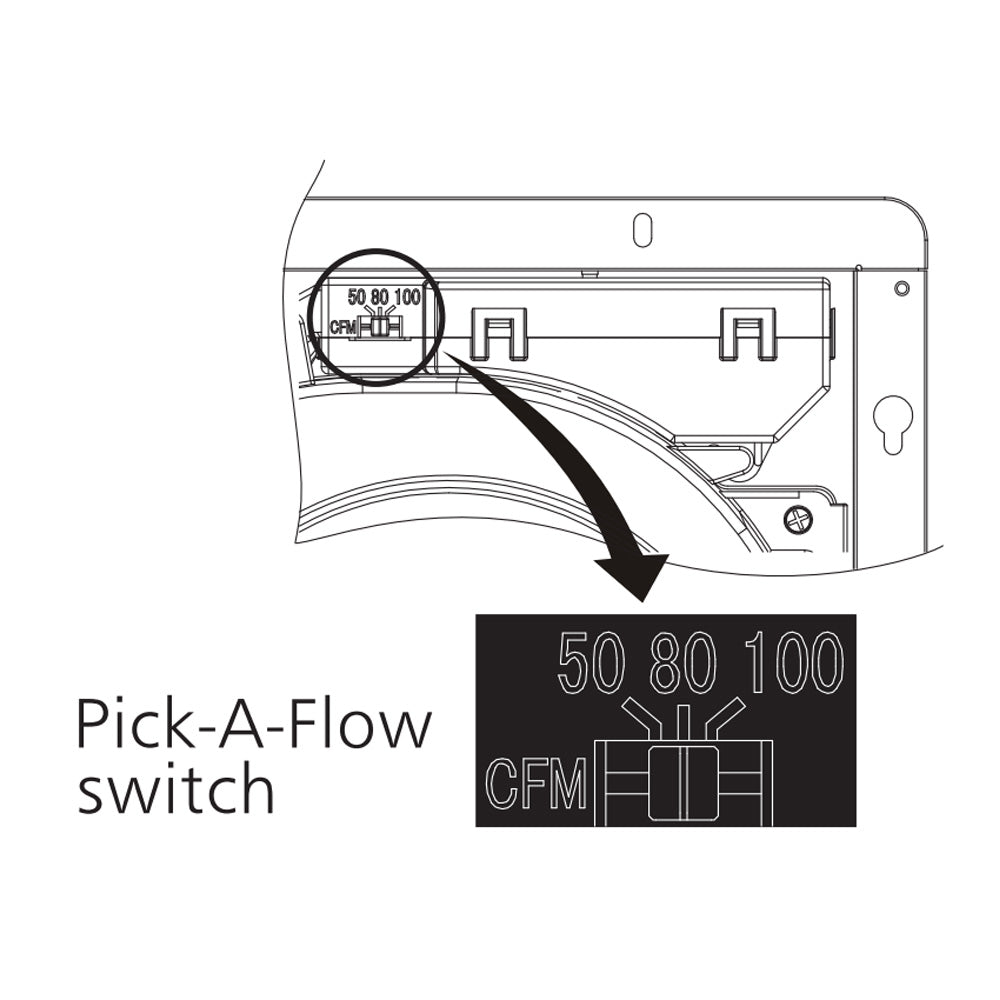

Pick-A-Flow™ Airflow Technology

Built-in Pick-A-Flow airflow selector provides the unique ability to select your required airflow (50-80-100 CFM) with the simple flip of a switch.





Condensation Sensor

Condensation Sensor helps control bathroom condensation to prevent mold and mildew. Sensor technology detects relative humidity and temperature to anticipate dew point, automatically turning the fan on to control humidity. Built-in Relative Humidity (RH) sensitivity adjustment enables fine tuning for moist conditions and for satisfying CALGreen requirements. The fan will run for 20 minutes before turning off.

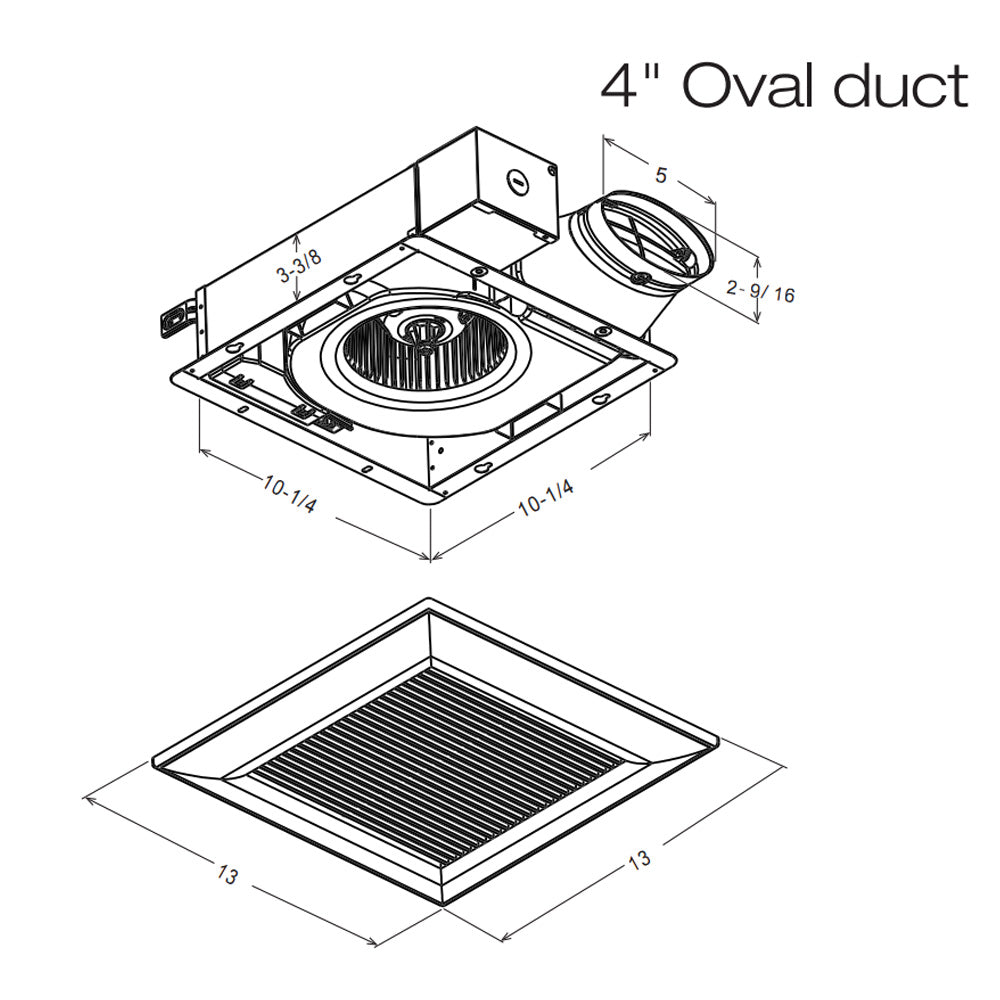

-3/8 in. Housing Depth is the Slimmest Design Available

The extremely thin profile WhisperValue® DC™ fan opens up options for where you can install the fan, which is UL listed for ceiling or wall mount. Installing a vent fan in a wall means that you won't need to cut a hole in the fire-rated ceiling and then buy a radiation damper to meet fire-resistance requirements in the building code. In a multifamily housing development, this means Big savings.





Long Life Means Reduced Costs

When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.





Installation Flexibility with a Simpler Bracket and Optional Duct Adapter

Unique L-Shaped bracket simplifies installation and provides strong support. The L bracket is interchangeable to be positioned to either the left or right side stud for optimal fan placement. Optional 4 in. Oval to 3 in. Round Duct Adapter (FV-VS43R)* is available to give you flexibility in duct layout and design. Panasonic fans are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. * Refer to the Accessories Tab for more information on the 4 in. Oval to 3 in. Round Duct Adapter (FV-VS43R), sold separately.





ENERGY STAR® Certified for Energy Savings

Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They've been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.


Overview

The WhisperValue® DC Fan, Condensation Sensor FV-0510VSC1 is the perfect solution for your ventilation needs. This innovative fan features a DC motor that delivers powerful, energy-efficient performance, making it an eco-friendly choice for your home or commercial space. It also includes a condensation sensor that automatically adjusts the fan speed to prevent excess moisture buildup and protect against mold and mildew. With its sleek, modern design and powerful performance, the WhisperValue® DC Fan is the perfect choice for your ventilation needs.

Features & Specifications

  • Built-in condensation sensor to control bathroom moisture
  • Elegant cover design made of Poly Pro material - Easily attaches to housing with torsion springs
  • Pick-A-Flow Speed Selector - Choose between 50/80/110 CFM
  • Noise (Sones): 0.3,0.4,0.9
  • Thermal fuse protection - provides protection against thermal damage or fires which may result from overcharging, overloads or other stresses

Recommended Application

  • Ideal for residential construction (Single & Multi-Family)
  • Manufactured homes
  • Bathrooms/restrooms
  • Laundry rooms







WhisperValue® DC™ (pre-installed condensation sensor) FV-0510VSC1 50-80-100 CFM, Lowest Profile, Ceiling or Wall Mount Fan

WhisperValue® DC™ FV-0510VSC1 Fan is the perfect multifamily solution; also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it actually fits in a 2x4 stud bay. The low profile, 3-3/8” housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere - in ceilings or walls.





ECM Motor - The Best Performing, Most Energy Efficient Motor Available

The revolutionary ECM motor with intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in the duct run and automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic ECM motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts





Pick-A-Flow™ Airflow Technology

Built-in Pick-A-Flow airflow selector provides the unique ability to select your required airflow (50-80-100 CFM) with the simple flip of a switch.





Condensation Sensor

Condensation Sensor helps control bathroom condensation to prevent mold and mildew. Sensor technology detects relative humidity and temperature to anticipate dew point, automatically turning the fan on to control humidity. Built-in Relative Humidity (RH) sensitivity adjustment enables fine tuning for moist conditions and for satisfying CALGreen requirements. The fan will run for 20 minutes before turning off.





-3/8 in. Housing Depth is the Slimmest Design Available

The extremely thin profile WhisperValue® DC™ fan opens up options for where you can install the fan, which is UL listed for ceiling or wall mount. Installing a vent fan in a wall means that you won't need to cut a hole in the fire-rated ceiling and then buy a radiation damper to meet fire-resistance requirements in the building code. In a multifamily housing development, this means Big savings.





Long Life Means Reduced Costs

When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.





Installation Flexibility with a Simpler Bracket and Optional Duct Adapter

Unique L-Shaped bracket simplifies installation and provides strong support. The L bracket is interchangeable to be positioned to either the left or right side stud for optimal fan placement. Optional 4 in. Oval to 3 in. Round Duct Adapter (FV-VS43R)* is available to give you flexibility in duct layout and design. Panasonic fans are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. * Refer to the Accessories Tab for more information on the 4 in. Oval to 3 in. Round Duct Adapter (FV-VS43R), sold separately.





ENERGY STAR® Certified for Energy Savings

Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They've been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.


Details

● VENTILATION FAN - Provides cleaner bathroom areas by removing excess moisture, humidity, odors and other pollutants. Occupants will feel much more comfortable with proper ventilation.

● EASY INSTALLATION - Seamless installation process with Flex-Z Fast brackets that provide a flexible trouble-free installation, even from below the ceiling.

● CERTIFIED PRODUCT - This switch is UL Listed, Energy Star, and Title 24 certified making it an ideal exhaust fan that complies with the lastet codes and standards.

● BENEFITS - Manufacturer's 3-Year Limited Warranty.

 ul1ul1

Specifications

Panasonic WhisperValue DC, Ventilation Fan, Condensation Sensor, 50/80/110 CFM Specifications Download Specs
Brand Panasonic
Wattage 10W
Voltage 120V
CFM 50/80/110
Sones 0.3, 0.4, 0.9
Room Size 100 sq. ft.
Duct Size 4" or 6"
Dimensions 13.25" x 18.25" x 7.5"
Housing Aluminum
Certifications UL, HVI Certified
Warranty 3-Year Manufacturer's Warranty
