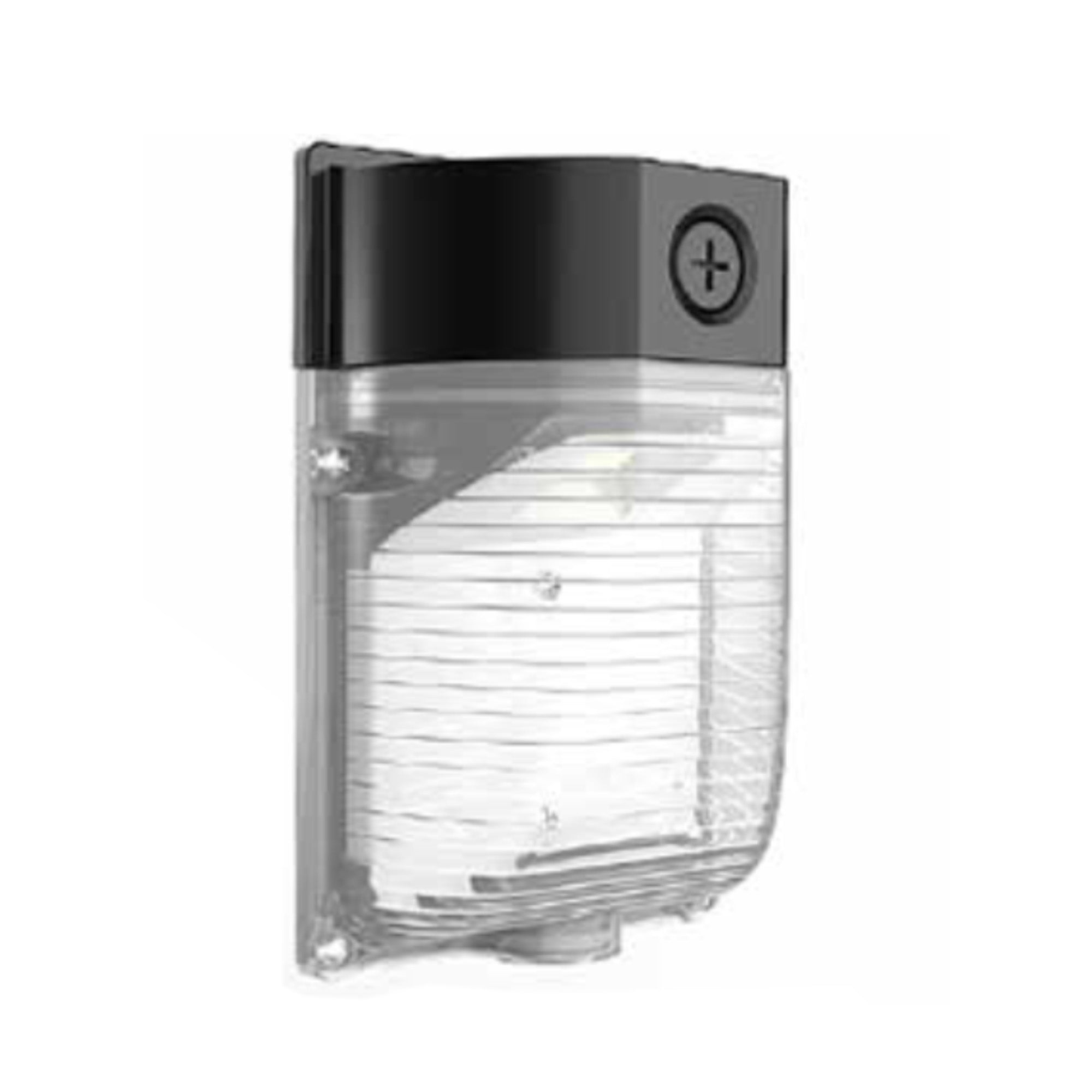

LED Mini Wall Pack, 23W, 3174 Lumens

LED Mini Wall Pack, 23W, 3174 Lumens

LED Mini Wall Pack, 23W, 3174 Lumens

SKU PQL-83689
Add To Cart
SKU PQL-83689Click to Copy
Free Shipping Over $100Free shipping on orders over $100!
  • Overview
  • Details
  • Reviews
  • Specs
  • Pro Tips
  • Support
  • High quality outdoor LED Mini Wall Pack with integrated LEDs ideal for security, building entry ways, and walkways and more.

    • 3,174 lumens
    • 4000K cool white color temperature
    • Black aluminum alloy / PC housing with clear lens
    • Dimmable 0-10V range 10% - 100%
    • IP65 rated / Wet rated
    • Energy efficient

    Recommended Application

    • Ideal for security
    • Pathways
    • Perimeter lighting
    • Building entry ways and walkways

  • LED Mini Wall Pack, 23W, 3174 Lumens Specifications Download Specs
    Wattage 23W
    Voltage 120-277V
    Lumens 3174LM
    CRI 73+
    Color Temperature 4000K
    Beam Angle 90°
    Dimmable Dimmable
    Dimming Details 0-10V Dimming
    Moisture Rating Wet
    Operating Temperature -22°F-113°F
    IP Rating IP65
    Lifetime 50,000 Hours
    Switching Cycles 50,000
    Warranty 5-Year
    Material Black Aluminum Alloy / PC with Clear Lens
    J-Box Included No
    Mercury Free Yes
    Housing Aluminum Alloy / PC
    Power Type Hardwired
    Mount Type Wall
    Motion Sensor No
    Compliance CA Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
    Certifications ETL, DLC
  • ● RELIABLE WEATHERPROOFING - The IP65 weatherproof rating ensures our LED wall pack can stand up to the elements. Sealed housing for outdoor spaces such as building entry ways and walkways, pathways and permiter lighting.

    ● COMMERCIAL GRADE - Energy efficiency.

    ● CERTIFIED - Enjoy a consistent high output light backed by ETL and RoHS certificates.


    ● BENEFITS - 5-Year Warranty.


  • Coming soon...

  • Manuals & Documentation

    Download Specs
    Download Manual
