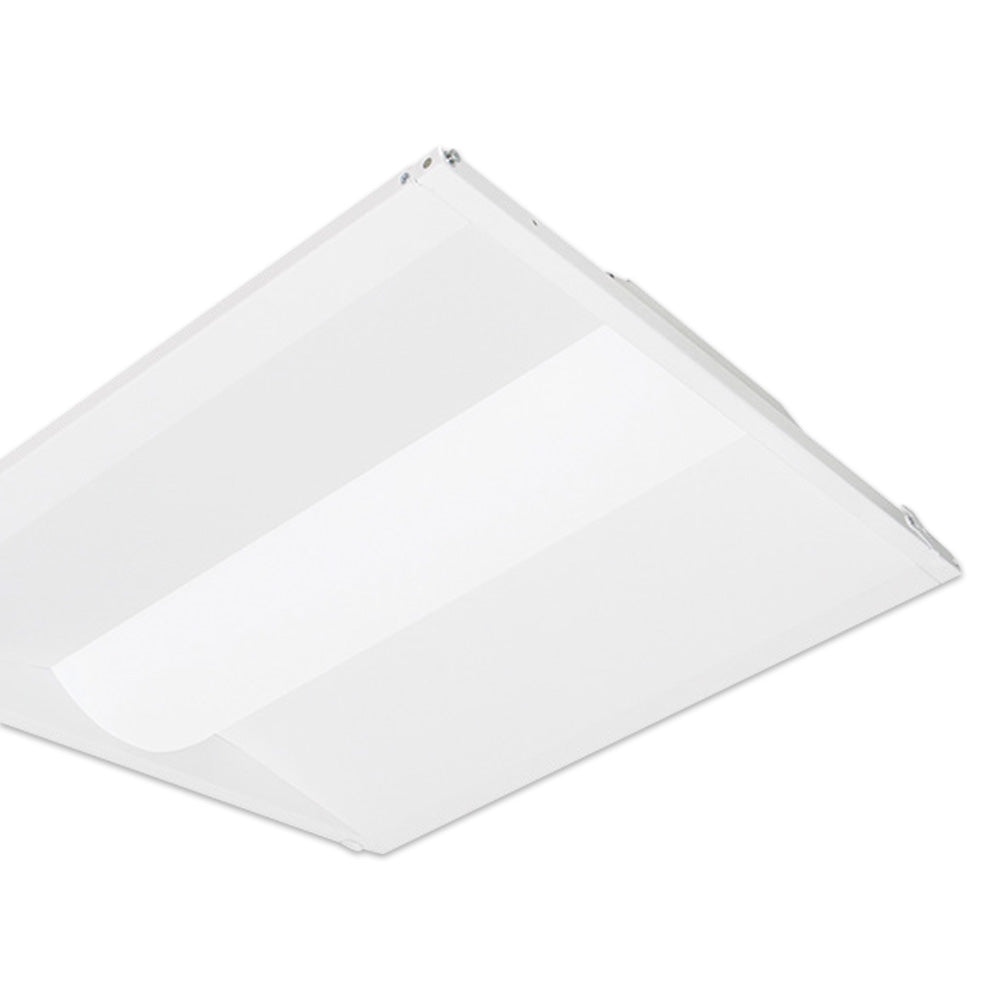

LED Center Basket Retrofit Troffer, 30W/35W/40W, 2x2, Selectable Wattage & CCT, 5000 Lumens
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayThis LED 2x2 center basket retrofit troffer is the perfect solution for any commercial or industrial setting in need of a bright and efficient lighting system. This retrofit troffer has a selectable wattage of 30W, 35W, or 40W, allowing you to choose the level of brightness that best suits your needs while keeping energy consumption to a minimum. Additionally, it has a selectable color temperature (CCT) of 3500K, 4100K, or 5000K, allowing you to choose the desired level of warmth or coolness of the light emitted. The 2x2 size and center basket design provide even and widespread light distribution for any large space, making it ideal for use in offices, hospitals, schools, and more.
Features
- Retrofit kit
- 3 selectable wattages
- 30W = 3780 lumens
- 35W = 4410 lumens
- 40W = 5040 lumens
- 3 color temperature selection
- 3500K neutral white
- 4100K cool white
- 5000K daylight
- Energy efficient - 125 lumens per watt
- Center basket design
- Designed for T-grid ceilings
- Dimmable range 0-10V, Range 10% - 100%
- 5 Year manufacturer warranty
Recommended Applications
- Offices
- Hospitals
- Retail stores
- Classrooms
- Commercial buildings
Overview
This LED 2x2 center basket retrofit troffer is the perfect solution for any commercial or industrial setting in need of a bright and efficient lighting system. This retrofit troffer has a selectable wattage of 30W, 35W, or 40W, allowing you to choose the level of brightness that best suits your needs while keeping energy consumption to a minimum. Additionally, it has a selectable color temperature (CCT) of 3500K, 4100K, or 5000K, allowing you to choose the desired level of warmth or coolness of the light emitted. The 2x2 size and center basket design provide even and widespread light distribution for any large space, making it ideal for use in offices, hospitals, schools, and more.
Features
- Retrofit kit
- 3 selectable wattages
- 30W = 3780 lumens
- 35W = 4410 lumens
- 40W = 5040 lumens
- 3 color temperature selection
- 3500K neutral white
- 4100K cool white
- 5000K daylight
- Energy efficient - 125 lumens per watt
- Center basket design
- Designed for T-grid ceilings
- Dimmable range 0-10V, Range 10% - 100%
- 5 Year manufacturer warranty
Recommended Applications
- Offices
- Hospitals
- Retail stores
- Classrooms
- Commercial buildings
Details

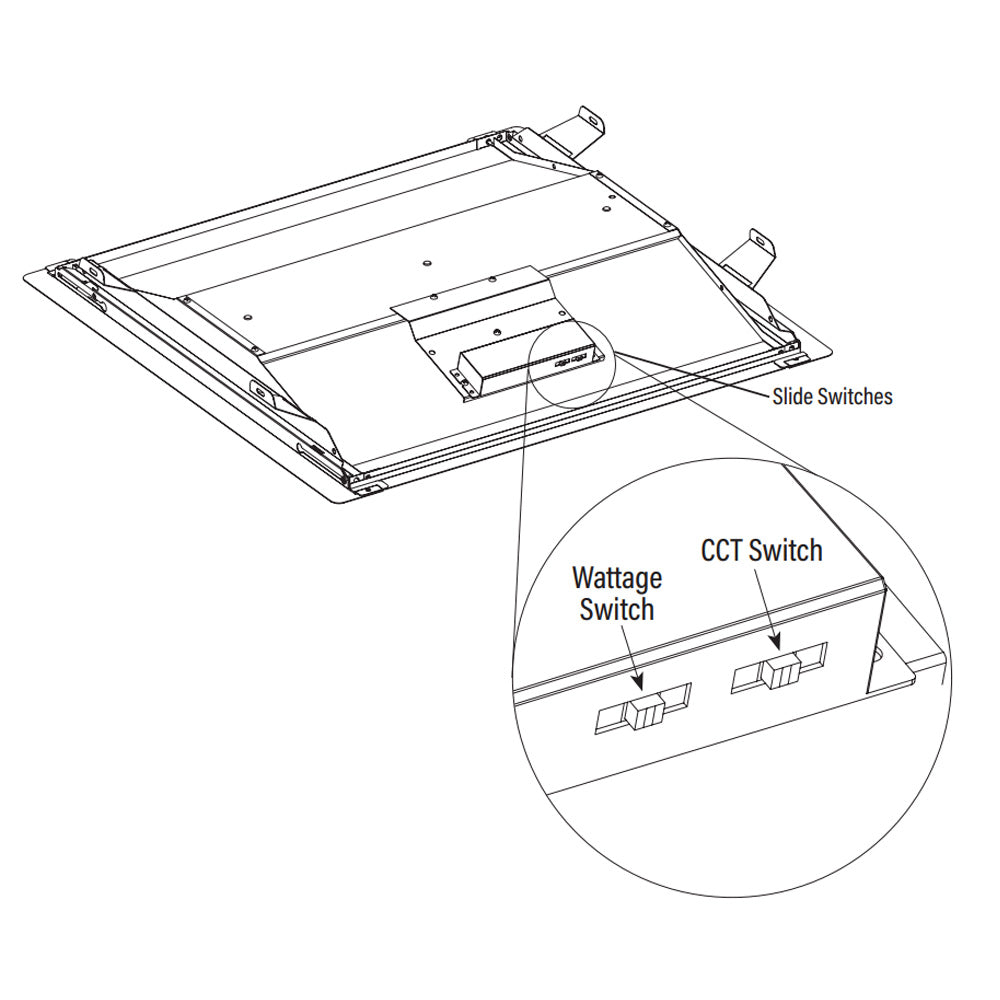

● SELECTABLE WATTAGE & CCT – Try out the various wattage options (30W, 35W, 40W) and color temperature options (3500K, 4100K, 5000K) using the slider switch on back of the troffer, then lock in your preference during the installation process.
● DIMMABLE - Seamless dimming capabilities (0-10V). LED Troffer provides instant bright light with no buzzing or flickering. Ideal applications include retail locations, showrooms, schools, healthcare facilities, and commercial office buildings.
● COMMERCIAL GRADE - Energy efficiency. Suitable for recessed installation.
● CERTIFIED PRODUCT - This LED fixture is UL certified and DLC 5.1 approved.
● BENEFITS - 5-Year Manufacturer Warranty.
Specifications
| LED Center Basket Retrofit Troffer, 30W/35W/40W, 2x2, Selectable Wattage & CCT, 5000 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Wattage | 30W / 35W / 40W |
| Voltage | 120-277V |
| Lumens | 3780 - 5040LM |
| CRI | 82+ |
| Beam Angle | 100° |
| Dimmable | Dimmable |
| Dimming Details | 0-10V Dimming |
| Color Temperature | 3500K / 4100K / 5000K |
| Efficiency | 125LM/W |
| Operating Temperature | -4°F-122°F |
| IP Rating | IP40 |
| Lifetime | 50,000 Hours |
| Warranty | 5-Yr Manufacturer Warranty |
| Switching Cycles | 50,000 |
| Material | Housing: 24 Gauge Steel |

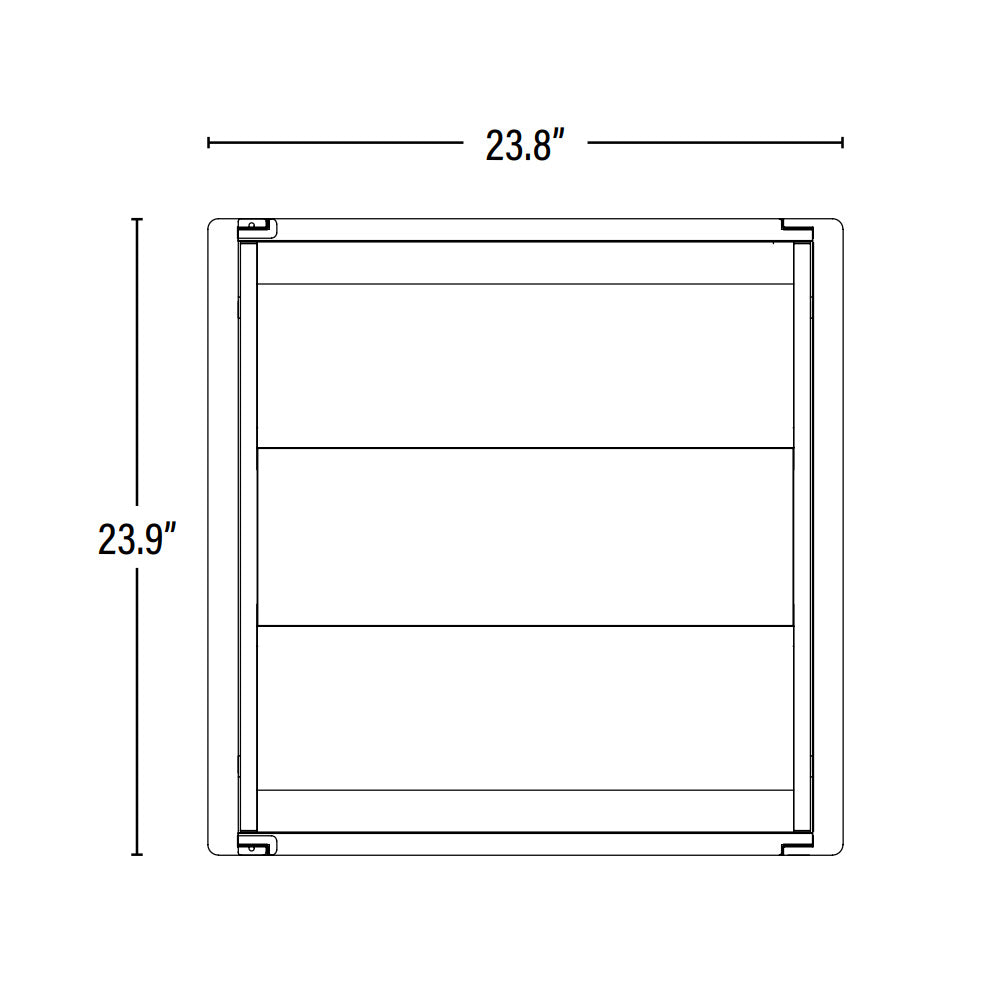

| Dimensions | 24.5" x 24.4" x 3.3" |
| Certifications | UL, DLC 5.1 |
| Moisture Rating | Damp |
| Power Type | Hardwired |
| Mount Type | Recessed |
